CNC Bits (5 Bits)

Name: CNC Bits (5 Bits)
Brand: Snapmaker US
SKU: 22004
Price: 17.99 USD
Availability: InStock

$17.99 USD

Free shipping on orders over $99 except AK, HI, and PR. Learn More

Care information

1-year warranty on the major modules of the 3D printers. Learn More

Delivery and Shipping

Non-pre-sale products

Preparation time: 1-3 business days

Leadtime: 3-7 business days

Shipping warehouse: Local warehouse

Order will be shipped in 1-3 business days after payment confirmation. US local warehouse delivery in 3-7 business days.

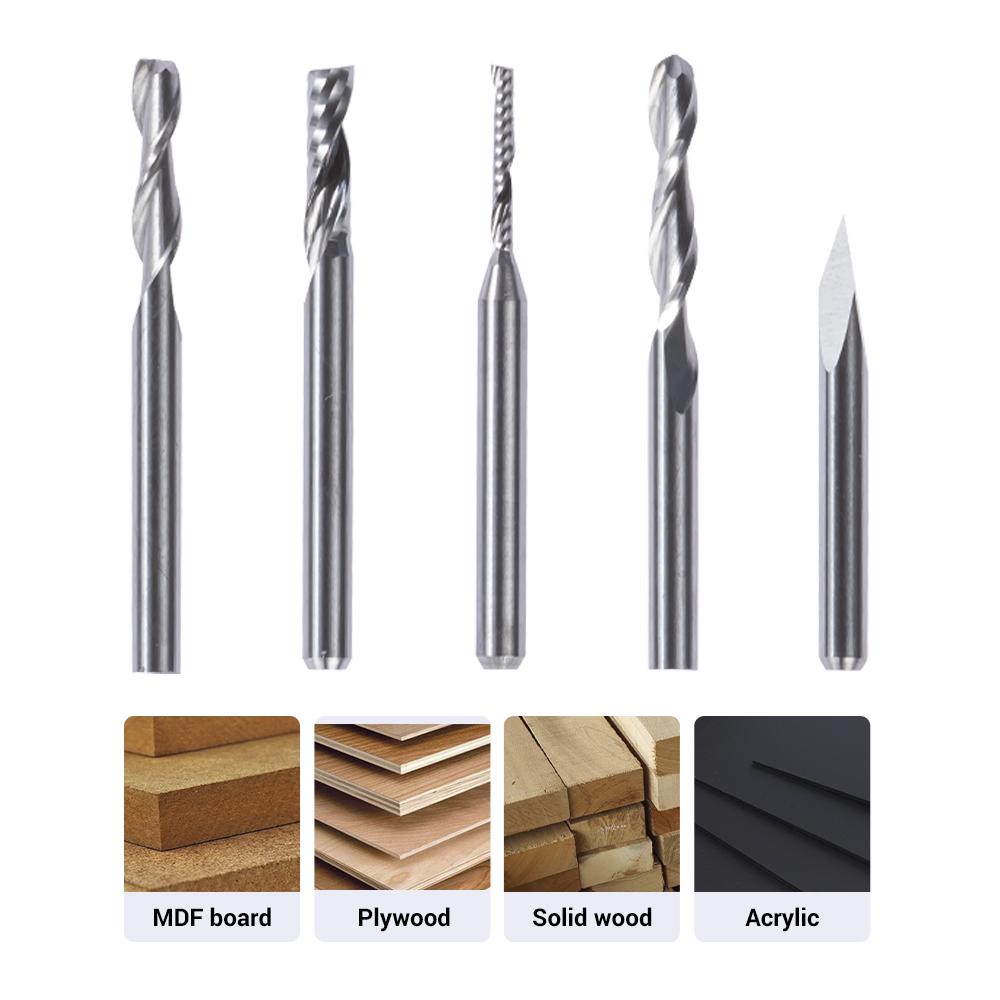

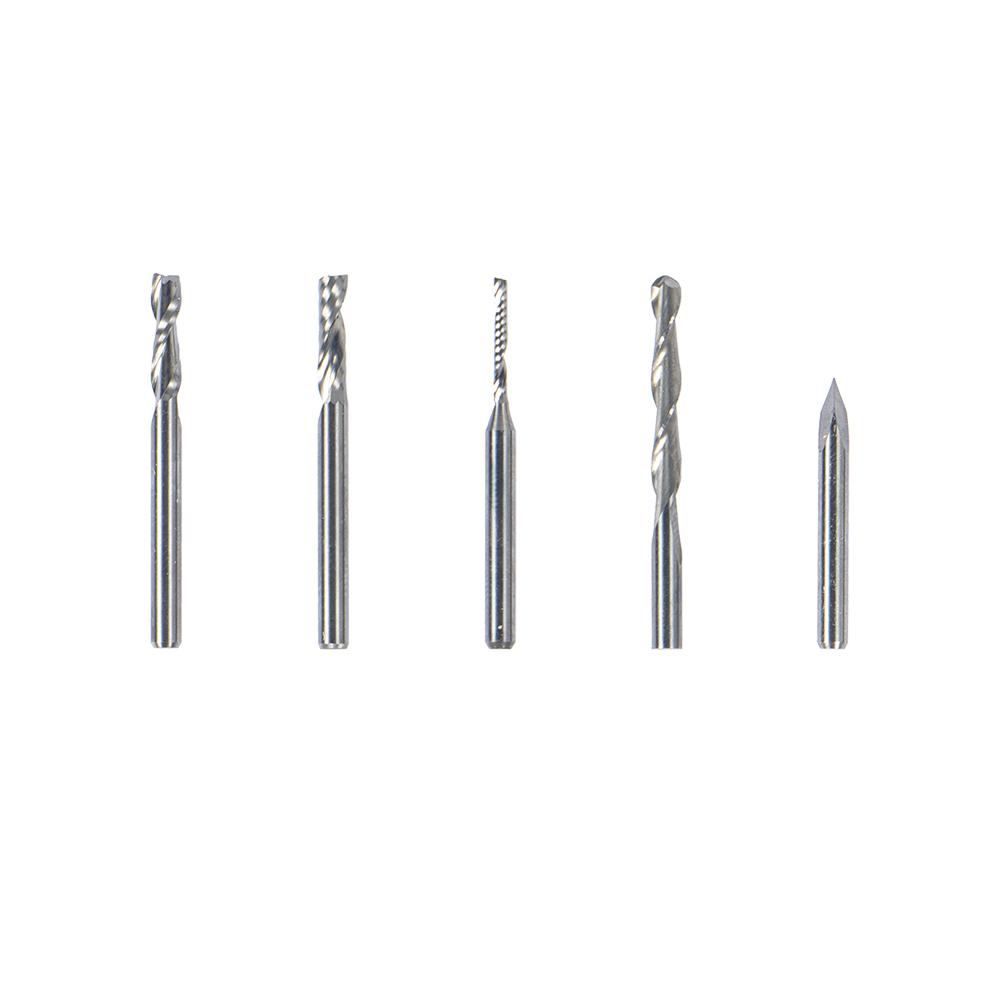

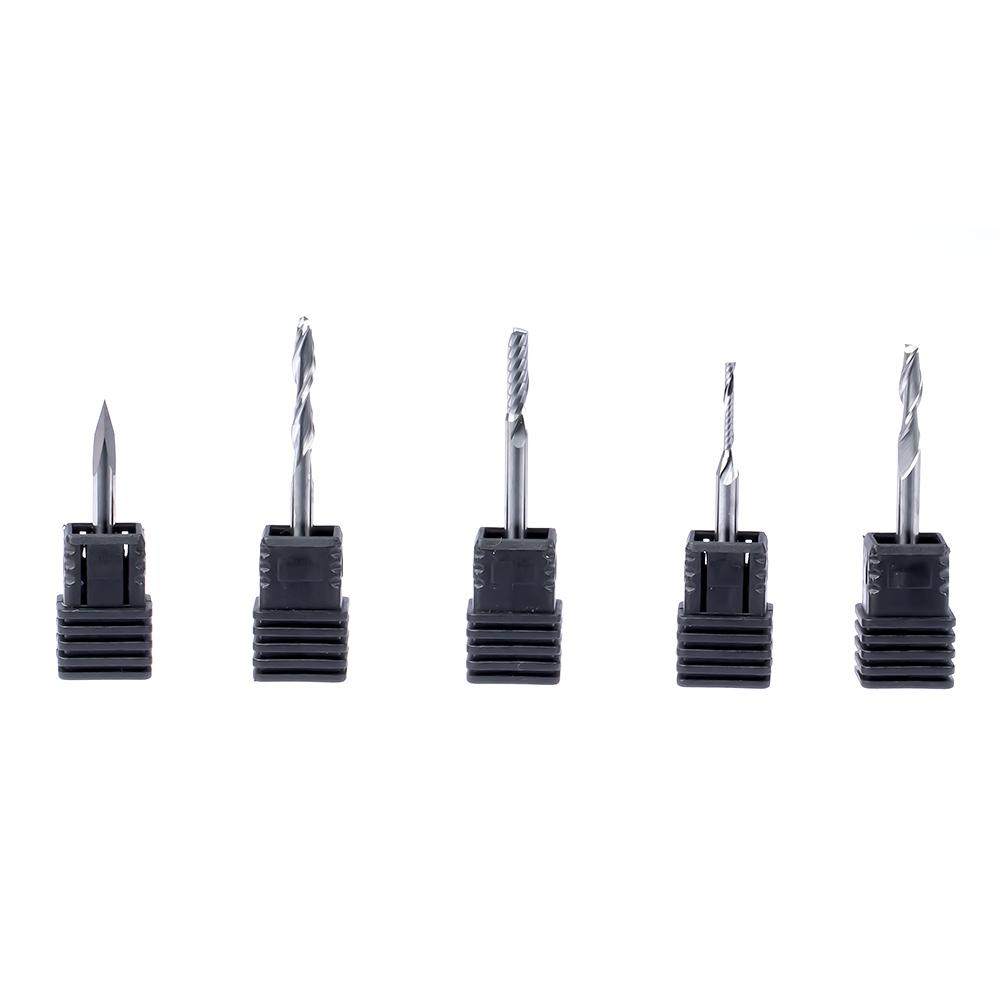

Five (5) CNC bits included:

• Flat End Mill (Single Flute, Cutting Diameter
1.5 mm)
• Flat End Mill (Double Flute, Cutting Diameter
3.175 mm)
• Flat End Mill (Single Flute)
• Ball End Mill
• Carving V-Bit

Overall features:

• General-purpose end mill with 3.175 mm shank
• UF20 tungsten steel alloy, with high hardness and wear resistance

Compatibility:

• Snapmaker Artisan
• Snapmaker 2.0
• Snapmaker Original

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

CNC Bits (5 bits)

High precision

Wide compatibility

Wear resistant

High precision

Wide compatibility

Wear resistance

Description

General-purpose End Mill

With a shank diameter of 3.175 mm, the bits in this set are compatible with both Snapmaker Original and Snapmaker 2.0.

UF20 tungsten steel alloy

UF20 tungsten steel alloy with high hardness and wear resistance, providing a long service time.

Flat End Mill

Typically used for roughing operations, cutting 2D shapes and flat-sided 3D shapes.

Ball End Mill

With a round cutting edge, typically used for cutting curvatures and 3D shapes into materials.

Carving V-bit

With a narrow and sharp tip, used for carving intricate, detail-rich patterns.

Flat End Mill

Typically used for roughing operations, cutting 2D shapes and flat-sided 3D shapes.

Ball End Mill

With a round cutting edge, typically used for cutting curvatures and 3D shapes into materials.

Carving V-bit

With a narrow and sharp tip, used for carving intricate, detail-rich patterns.

Showcases

Astronaut (CNC Carving)

Wavy surface (CNC Carving)

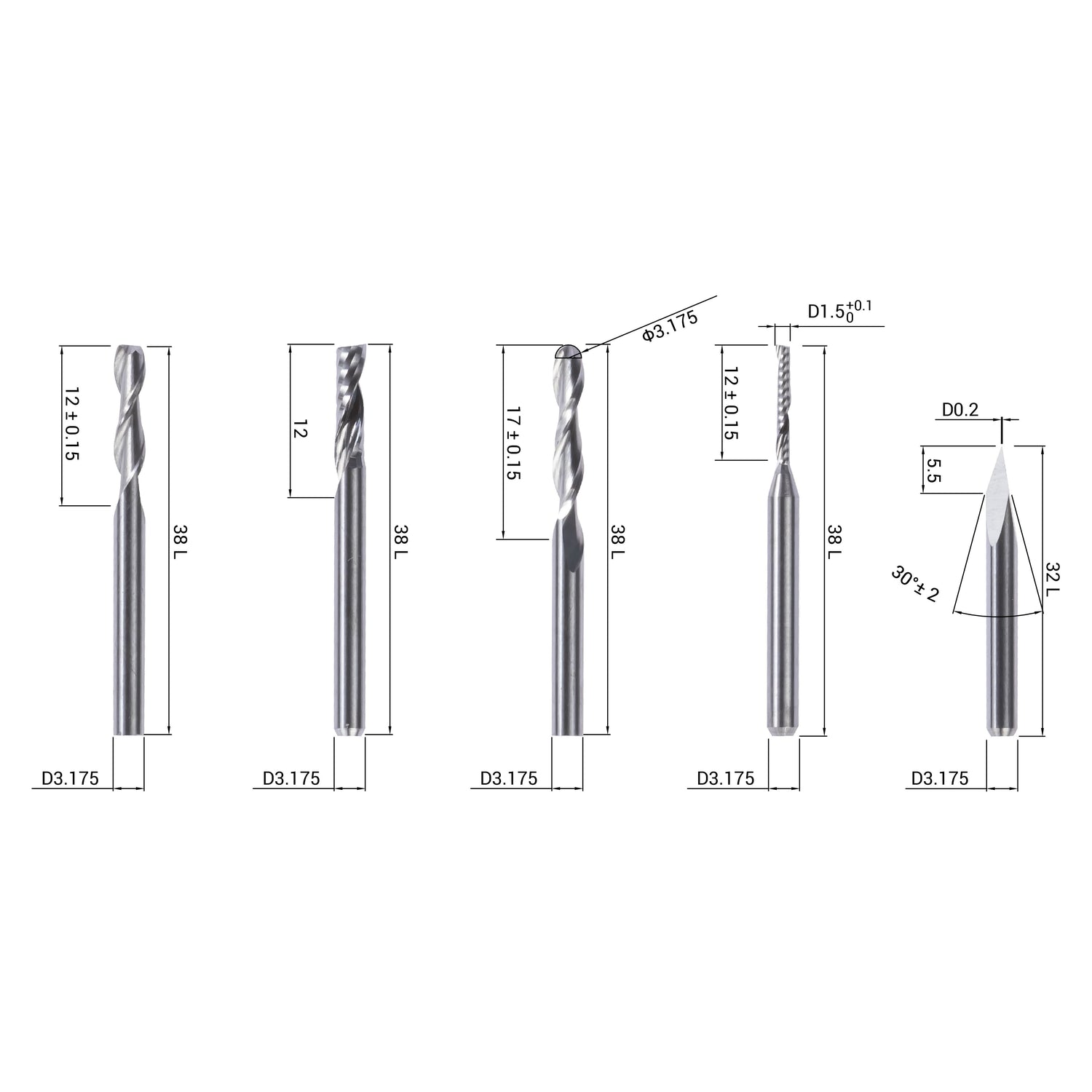

Specifications

Flat End Mill (double cut)

Flat End Mill (single cut 3.175)

Shank Diameter

3.175 mm / 0.125 "

Total Length

38 mm / 1.496 "

Flute Length

12 mm / 0.472 "

Cutting Diameter

3.175 mm / 0.125 "

Shank Diameter

3.175 mm / 0.125 "

Total Length

38 mm / 1.496 "

Flute Length

12 mm / 0.472 "

Cutting Diameter

3.175 mm / 0.125 "

Shank Diameter

3.175 mm / 0.125 "

Total Length

38 mm / 1.496 "

Flute Length

12 mm / 0.472 "

Cutting Diameter

3.175 mm / 0.125 "

Shank Diameter

3.175 mm / 0.125 "

Total Length

38 mm / 1.496 "

Flute Length

12 mm / 0.472 "

Cutting Diameter

3.175 mm / 0.125 "

Flat End Mill (double cut 1.5)

Ball End Mill

Shank Diameter

3.175 mm / 0.125 "

Total Length

38 mm / 1.496 "

Flute Length

12 mm / 0.472 "

Cutting Diameter

1.5 mm / 0.059 "

Shank Diameter

3.175 mm / 0.125 "

Total Length

38 mm / 1.496 "

Flute Length

17 mm / 0.669 "

Cutting Diameter

3 mm / 0.117 "

Shank Diameter

3.175 mm / 0.125 "

Total Length

38 mm / 1.496 "

Flute Length

12 mm / 0.472 "

Cutting Diameter

1.5 mm / 0.059 "

Shank Diameter

3.175 mm / 0.125 "

Total Length

38 mm / 1.496 "

Flute Length

17 mm / 0.669 "

Cutting Diameter

3 mm / 0.117 "

Carving V-bit

Shank Diameter

3.175 mm / 0.125 "

Total Length

32 mm / 1.260 "

Angle

30 °

Tip Diameter

0.2 mm / 0.008"

Shank Diameter

3.175 mm / 0.125 "

Total Length

32 mm / 1.260 "

Angle

30 °

Tip Diameter

0.2 mm / 0.008 "

* Warning:

• Make sure you have installed the bits correctly before starting, otherwise it may affect carving quality, cause damage or injury.
• Pay attention to Work Speed and Step Down to avoid potential risk of bit breaking or machine damage.

CNC Bits (5 bits)

High precision

Wide compatibility

Wear resistant

High precision

Wide compatibility

Wear resistance

Description

General-purpose End Mill

With a shank diameter of 3.175 mm, the bits in this set are compatible with both Snapmaker Original and Snapmaker 2.0.

UF20 tungsten steel alloy

UF20 tungsten steel alloy with high hardness and wear resistance, providing a long service time.

Flat End Mill

Typically used for roughing operations, cutting 2D shapes and flat-sided 3D shapes.

Ball End Mill

With a round cutting edge, typically used for cutting curvatures and 3D shapes into materials.

Carving V-bit

With a narrow and sharp tip, used for carving intricate, detail-rich patterns.

Flat End Mill

Typically used for roughing operations, cutting 2D shapes and flat-sided 3D shapes.

Ball End Mill

With a round cutting edge, typically used for cutting curvatures and 3D shapes into materials.

Carving V-bit

With a narrow and sharp tip, used for carving intricate, detail-rich patterns.

Showcases

Astronaut (CNC Carving)

Wavy surface (CNC Carving)

Specifications

Flat End Mill (double cut)

Flat End Mill (single cut 3.175)

Shank Diameter

3.175 mm / 0.125 "

Total Length

38 mm / 1.496 "

Flute Length

12 mm / 0.472 "

Cutting Diameter

3.175 mm / 0.125 "

Shank Diameter

3.175 mm / 0.125 "

Total Length

38 mm / 1.496 "

Flute Length

12 mm / 0.472 "

Cutting Diameter

3.175 mm / 0.125 "

Shank Diameter

3.175 mm / 0.125 "

Total Length

38 mm / 1.496 "

Flute Length

12 mm / 0.472 "

Cutting Diameter

3.175 mm / 0.125 "

Shank Diameter

3.175 mm / 0.125 "

Total Length

38 mm / 1.496 "

Flute Length

12 mm / 0.472 "

Cutting Diameter

3.175 mm / 0.125 "

Flat End Mill (double cut 1.5)

Ball End Mill

Shank Diameter

3.175 mm / 0.125 "

Total Length

38 mm / 1.496 "

Flute Length

12 mm / 0.472 "

Cutting Diameter

1.5 mm / 0.059 "

Shank Diameter

3.175 mm / 0.125 "

Total Length

38 mm / 1.496 "

Flute Length

17 mm / 0.669 "

Cutting Diameter

3 mm / 0.117 "

Shank Diameter

3.175 mm / 0.125 "

Total Length

38 mm / 1.496 "

Flute Length

12 mm / 0.472 "

Cutting Diameter

1.5 mm / 0.059 "

Shank Diameter

3.175 mm / 0.125 "

Total Length

38 mm / 1.496 "

Flute Length

17 mm / 0.669 "

Cutting Diameter

3 mm / 0.117 "

Carving V-bit

Shank Diameter

3.175 mm / 0.125 "

Total Length

32 mm / 1.260 "

Angle

30 °

Tip Diameter

0.2 mm / 0.008"

Shank Diameter

3.175 mm / 0.125 "

Total Length

32 mm / 1.260 "

Angle

30 °

Tip Diameter

0.2 mm / 0.008 "

* Warning:

• Make sure you have installed the bits correctly before starting, otherwise it may affect carving quality, cause damage or injury.
• Pay attention to Work Speed and Step Down to avoid potential risk of bit breaking or machine damage.
