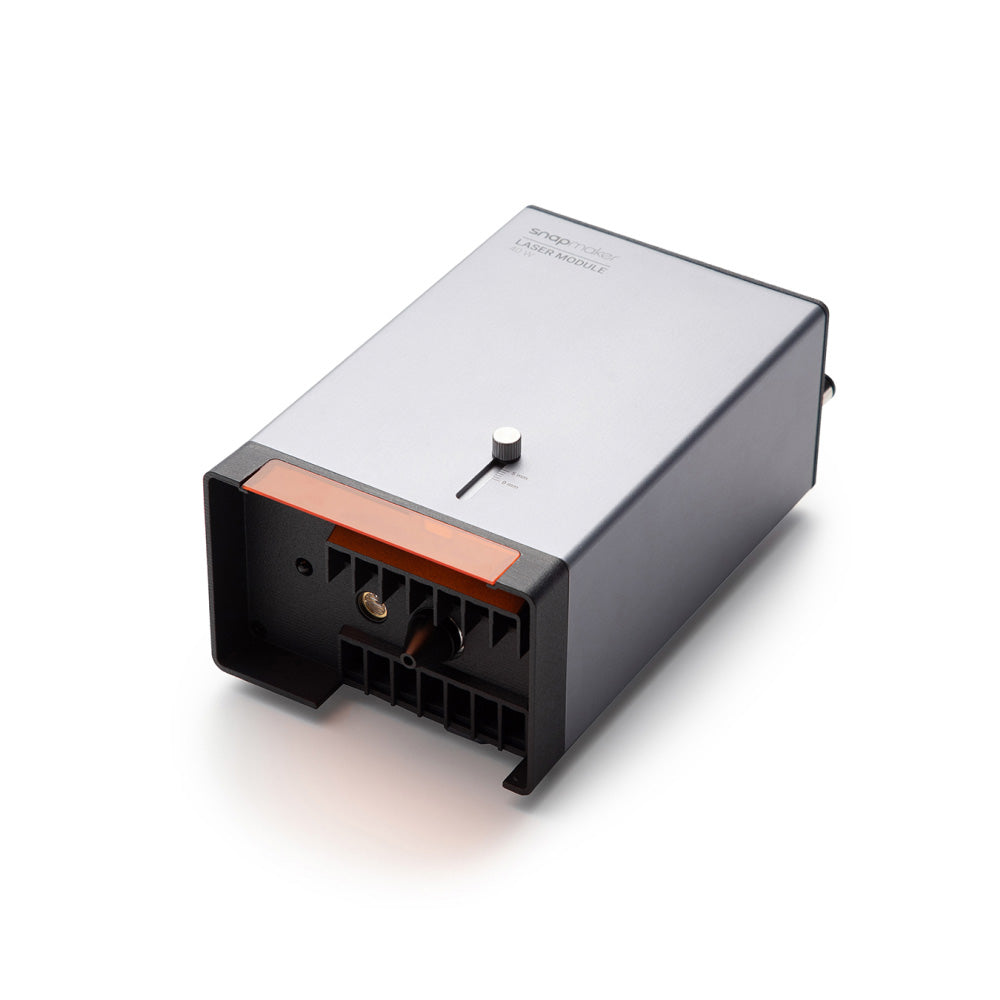

Snapmaker 40W Laser Module with Air Assist

Name: Snapmaker 40W Laser Module with Air Assist
Brand: Snapmaker
SKU: 71050
Price: 649.0 USD
Availability: InStock
Rating: 4.6 (16 reviews)

$649.00 USD ~~$999.00~~

⚠️The 20W & 40W Laser Modules are the Class 4 laser products. For safety, you should always use these lasers with an Enclosure or Laser Safety Goggles (190-540nm OD6+ and 900-1700nm OD4+). For optimal protection, we recommend using both an enclosure to block laser radiation and goggles for eye safety.
⚠️ The Artisan Enclosure is not available for online purchase. Kindly contact our customer service team at info@snapmaker.com to make a purchase.

Product Overview

• Strong Laser Cutting Capabilities: 20W/40W Laser Power
• Smart Air Assist: The equipped Air Assist Pump can be controlled via Luban.
• Laser Safety Shield: Reduce laser radiation.
• Compatibility: Snapmaker 2.0 A350T/A350/A250T/A250/F350/F250, Snapmaker 2.0 A150 (only compatible with 20W), Snapmaker Artisan, Snapmaker Ray

Quick Start Guide for 20W & 40W Laser Module on Snapmaker 2.0

Quick Start Guide for 20W & 40W Laser Module on Artisan

Learn More

Machine

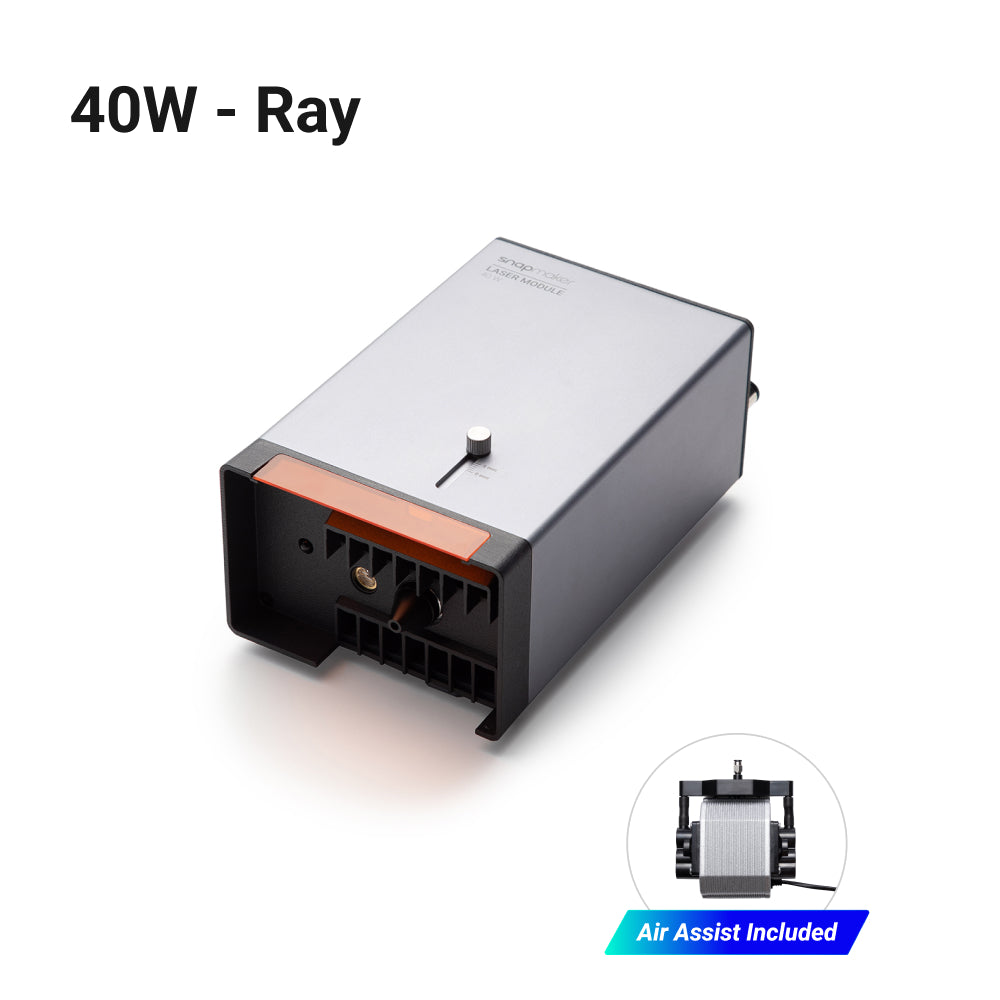

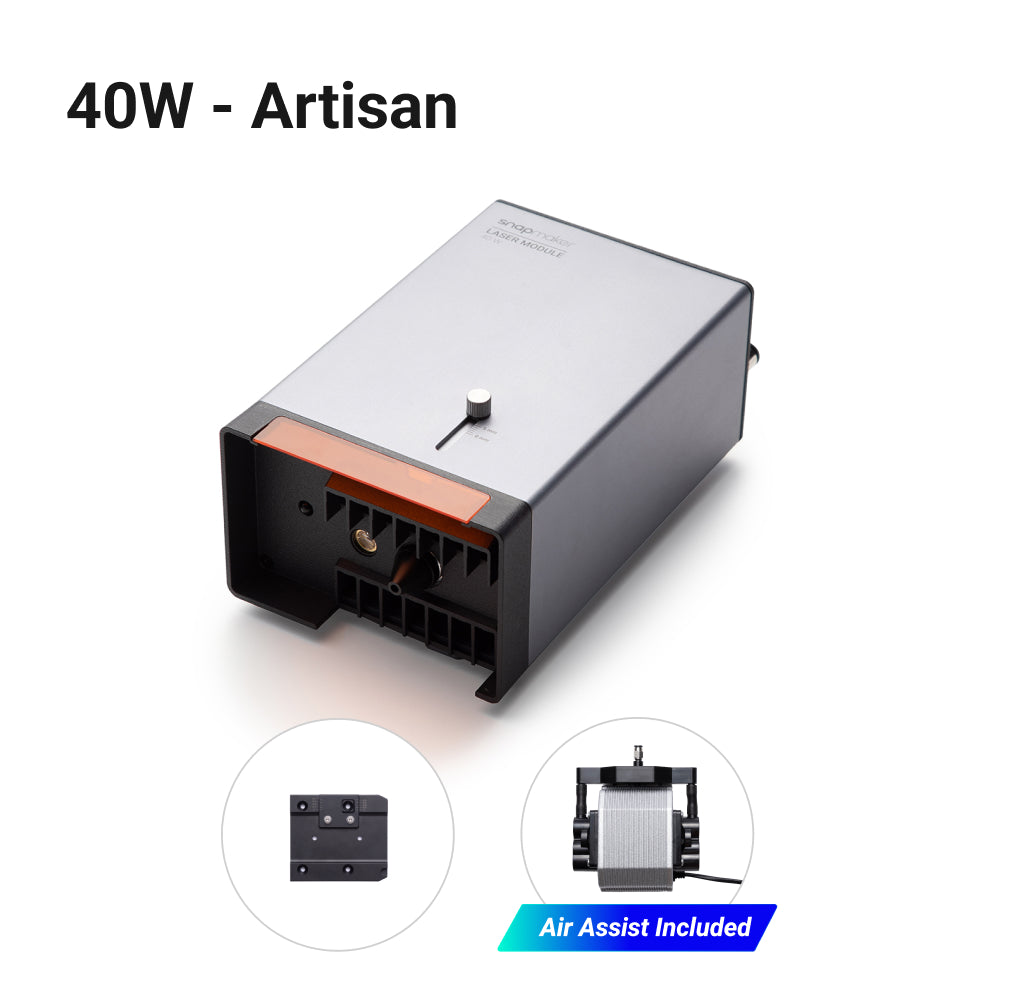

Snapmaker 2.0 Snapmaker Artisan Snapmaker Ray

Model

40W Laser Module

Product variants

Payment methods

Delivery

Orders will be shipped in 1-3 business days.

Free shipping on orders over $99 except AK, HI, PR, AE, and AP.
US local warehouse delivery in 3-7 business days.

Earn [points_amount] when you buy this item.

Features

20W & 40W Laser Power

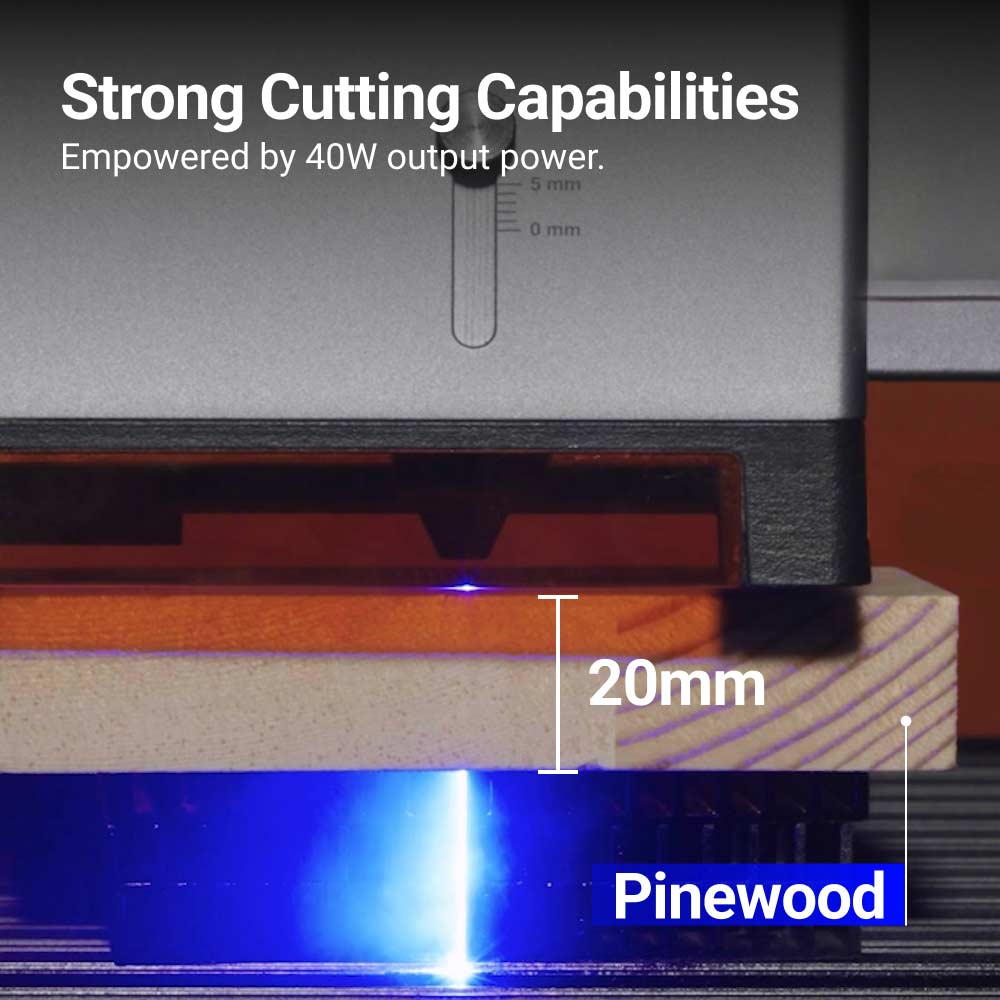

20mm Pinewood Cutting in one pass (40W)
15mm Basswood Plywood Cutting in one pass (40W) 10mm Basswood Plywood Cutting in one pass (20W)

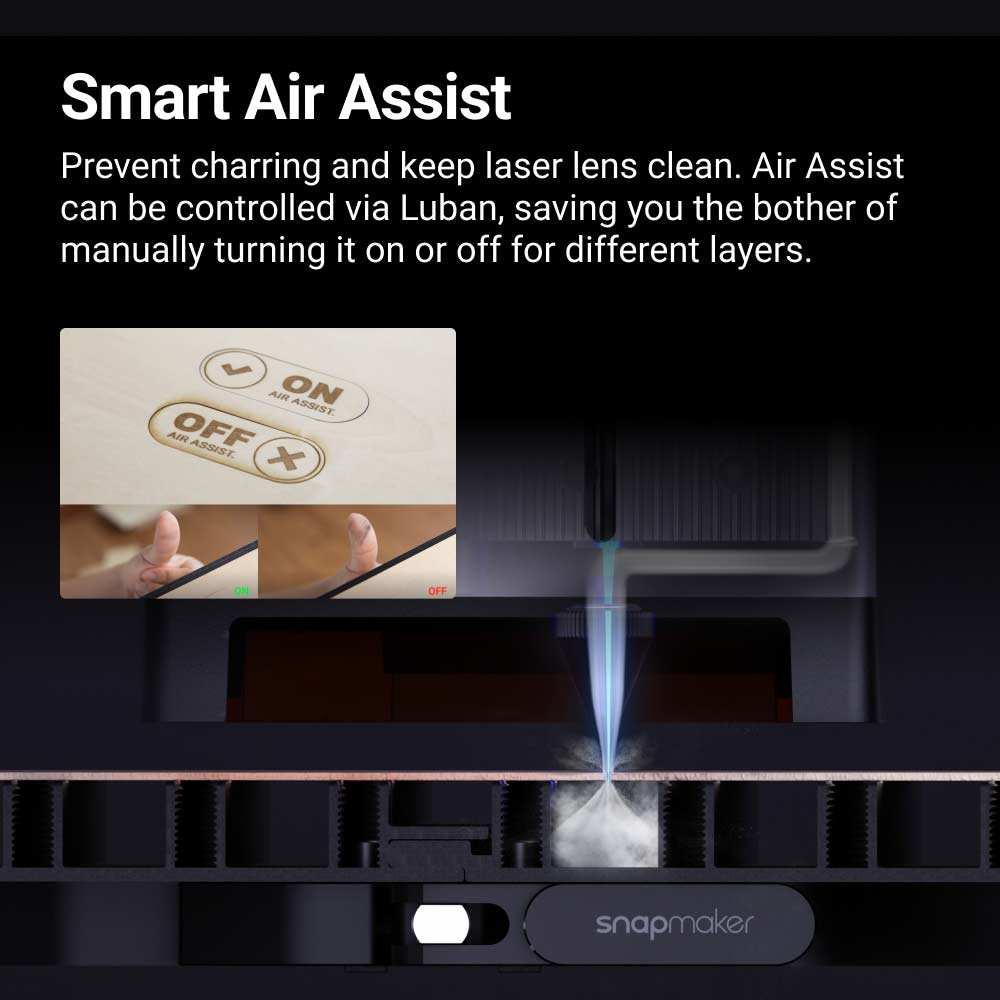

Smart Air Assist

Prevent charring, improve the quality of your work, and keep laser lens clean. Air Assist can be controlled via Luban, saving you the bother of manually turning it on or off for different layers.

1000+ Ready-to-use Templates in Luban

Provide an extensive library of preset templates, including common patterns, shapes, and icons, for you to come up with a design in minutes.

Easy to Focus

Calibrate the focus by inputting material thickness on screen and run auto-focus or focus Laser with Focus Lever.

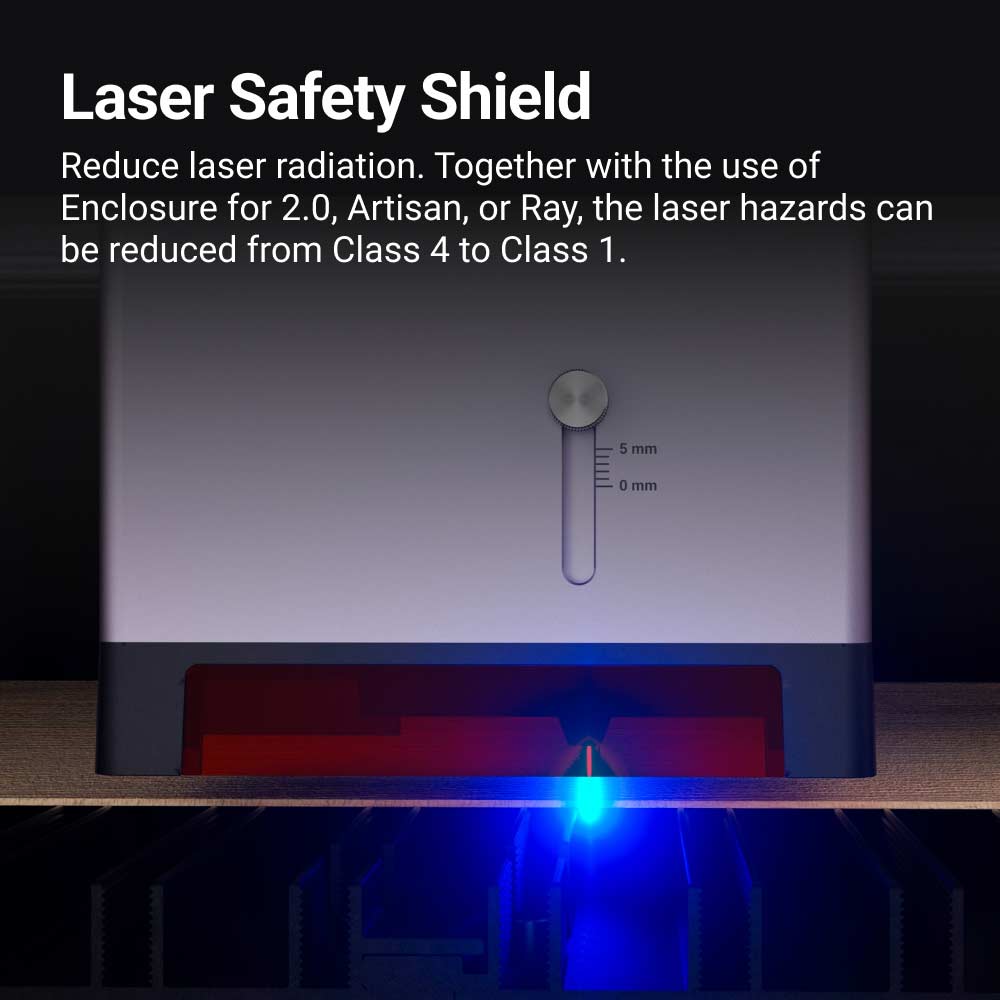

Laser Safety Shield

Reduce laser radiation. Together with the use of Enclosure for 2.0, Artisan or Ray, the laser hazards can be reduced from Class 4 to Class 1.

Learn More

Transform Even More Ideas Into Reality

Specification

40W Laser Module

20W Laser Module

Laser Output Power

40W

20W

Laser Electric Power

125W

65W

Laser Type

450 - 460nm Semi-conductor

Dimensions

105mm × 166mm × 75mm

92mm × 141mm × 65mm

Weight

1.26kg

0.81kg

Maximum Work Speed^[1]

Snapmaker 2.0: 100mm/s
Snapmaker Artisan: 200mm/s

Maximum Cutting Speed^[2]

20mm/s

10mm/s

Work Area

400mm × 400mm (Artisan)

320mm × 350mm (A350/A350T/F350)

230mm × 250mm (A250/A250T/F250)

400mm × 400mm (Artisan)

320mm × 350mm (A350/A350T/F350)

230mm × 250mm (A250/A250T/F250)

Frame Material

Aluminum Alloy

Supported Engraving Materials

Basswood, Pinewood, Plywood, Beech,Walnut, Bamboo, MDF, Painted Metal,Tinplate, Stainless Steel, Anodized Aluminum, Dark Glass, Slate, Brick, Ceramic, Jade, Marble, Shale, Leather, Fabric, Canvas,Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)

Supported Cutting Materials

Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric,Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded), Stainless Steel (0.1mm)

Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric,Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)

Maximum Thickness of one-pass cutting

15mm Basswood Plywood

10mm Basswood Plywood

Laser Spot Dimensions

0.1mm × 0.15mm

0.08mm × 0.1mm

Supported Design File

STL, SVG, JPEG, PNG, JPG, BMP, DXF, SNAPLZR

Supported Processing File

Air Assist

√

Camera Capture

Focus Method

2.0/Artisan: Auto-focus through manual measuring or Material Touching Measuring (using Focus Lever)

Overheat Protection

√

Orientation Detection

√

Compatibility

Artisan (3-in-1 version), Ray, A350T/A350, A250T/A250, F350/F250, Air Purifier, Rotary Module, CAN Hub, Emergency Stop Button, Enclosure for 2.0

Artisan (3-in-1 version), Ray, A350T/A350, A250T/A250, F350/F250, A150, Air Purifier, Rotary Module, CAN Hub, Emergency Stop Button, Enclosure for 2.0

Notes:
[1] Depending on your material, the work speed might vary.
[2] The data is obtained based on the 3mm Basswood Plywood performing one pass cutting. Depending on your material, the cutting speed might vary.

Comparison

Weight

1.26kg

Maximum Engraving Speed

Snapmaker 2.0: 100 mm/s Snapmaker Artisan: 200 mm/s

Maximum Cutting Speed

20 mm/s

Maximum Thickness of one-pass cutting

15 mm Basswood Plywood

400 mm × 400 mm (Artisan)

Work Area

320 mm × 350 mm (A350/A350T/F350)

230 mm × 250 mm (A250/A250T/F250)

Laser Spot Dimensions

0.1mm × 0.15mm

Air Assist

√

Camera Capture

Weight

0.81kg

Maximum Engraving Speed

Snapmaker 2.0: 100 mm/s Snapmaker Artisan: 200 mm/s

Maximum Cutting Speed

10 mm/s

Maximum Thickness of one-pass cutting

10 mm Basswood Plywood

400 mm × 400 mm (Artisan)

Work Area

320 mm × 350 mm (A350/A350T/F350)

230 mm × 250 mm (A250/A250T/F250)

Laser Spot Dimensions

0.08mm × 0.1mm

Air Assist

√

Camera Capture

Weight

0.63kg

Maximum Engraving Speed

Snapmaker 2.0: 100 mm/s Snapmaker Artisan: 200 mm/s

Maximum Cutting Speed

5 mm/s

Maximum Thickness of one-pass cutting

5 mm Basswood Plywood

400 mm × 400 mm (Artisan)

Work Area

320 mm × 350 mm (A350/A350T/F350)

230 mm × 250 mm (A250/A250T/F250)

Laser Spot Dimensions

0.05mm × 0.2mm

Air Assist

Camera Capture

√

In the Box (40W Laser Module)

40W Laser Module × 1

Air Assist Pump × 1

Air Tube × 1

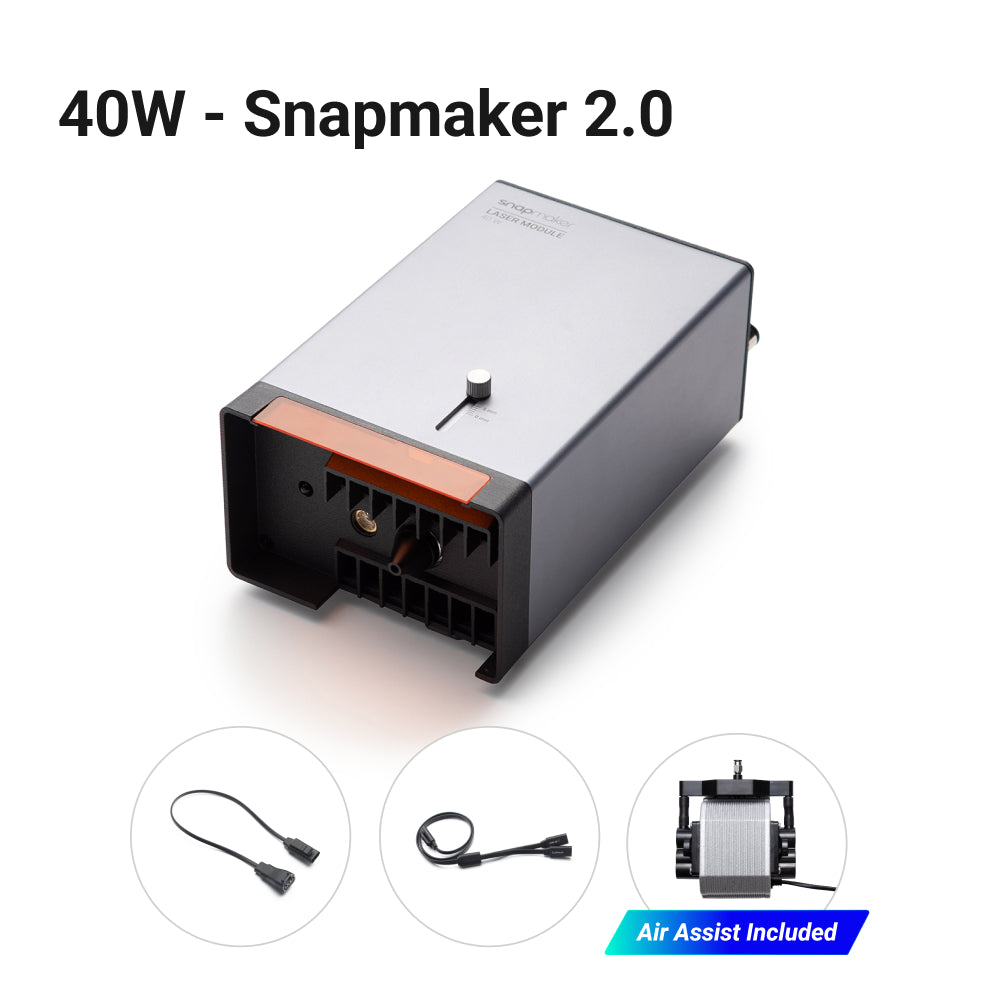

Boosted Toolhead Cable (for Snapmaker 2.0 user only) × 1

Air Assist Pump Conversion Cable (for Snapmaker 2.0 user only) × 1

Cotton Swab × 5

Cable Tie × 1

M4 × 12 Screw × 3

M4 × 8 Screw × 6

Basswood Plywood × 1

Calibration Card × 1

Online Tutorial Guide Card × 1

Laser Lens Protector × 1

In the Box (20W Laser Module)

20W Laser Module × 1

Air Assist Pump × 1

Air Tube × 1

Air Assist Pump Conversion Cable (for Snapmaker 2.0 user only) × 1

Cotton Swab × 5

Cable Tie × 1

M4 × 12 Screw × 3

M4 × 8 Screw × 6

Basswood Plywood × 1

Calibration Card × 1

Online Tutorial Guide Card × 1

Laser Lens Protector × 1

Frequently Asked Questions

1. What is the maximum cutting thickness of 20W & 40W Laser Module?

20W laser module: 10mm Basswood Plywood in one pass.
40W laser module: 15mm Basswood Plywood in one pass.

2. What are the specs of 10W & 20W & 40W Laser Module?

[1] Depending on your material, the work speed might vary.
[2] The data is obtained based on the 3mm Basswood Plywood performing one pass cutting. Depending on your material, the cutting speed might vary.

3. What are the safety features of Snapmaker 20W & 40W laser modules?

Snapmaker 20W & 40W laser modules are equipped with several safety features including a safety shield and enclosures to minimize exposure. They also feature an Air Assist system to reduce fire hazards, a gyro sensor for orientation detection that prevents laser operation if misaligned, and overheat protection that automatically shuts off the module if temperatures exceed safe limits, allowing use to resume once cooled.

4. What should I be aware of while operating?

• Ensure you never leave the powerful laser unattended.
• Avoid direct contact with the aperture and protect yourself from direct or scattered radiation.
• Familiarize yourself with the material's properties and use necessary safety precautions during laser engraving and cutting to mitigate any potential hazards.

5. Does the 20W & 40W Laser Module have a camera function like the 10W Laser Module?

No, the 20W & 40W Laser Modules do not include a built-in camera function like the 10W Laser Module. Instead, they utilize a Focus Lever for laser platform height calibration, which offers a simple and reliable workflow. Rest assured, you'll achieve incredible results and a smooth experience with these new laser modules.

6. Does Snapmaker support other software for laser engraving and cutting?

Yes, in addition to Snapmaker's own Luban software, Snapmaker laser modules are compatible with LightBurn for engraving and cutting.

7. Is there a list of recommended parameters for different materials?

After official testing, Snapmaker provides recommended parameters for three commonly used materials: basswood plywood, black acrylic, and walnut. Find Recommended Parameters for optimal performance.

8. If I have both the Snapmaker 2.0 machine and the Snapmaker Artisan machine, which one should I choose?

The 1064nm We recommend choosing the Snapmaker 2.0 machine with the 20W & 40W Laser Module. When you purchase the Snapmaker 2.0 machine, you will be provided with a Boosted Toolhead Cable and an Air Assist Pump Conversion Cable. These cables are essential for the proper functioning of the 20W and 40W Laser Module, as there may be compatibility issues without them.
However, Snapmaker Artisan & Ray machines don't need these extra cables. If you have mistakenly selected the wrong machine type when placing your order, you can contact support at info@snapmaker.com to make the needed changes.

9. How should I manage fumes and exhaust with the Snapmaker 20W & 40W laser modules?

Use the Air Assist feature and operate the laser within an enclosed, well-ventilated area to effectively manage fumes and enhance safety.

10. How to choose a Snapmaker laser module that best suits me?

Choosing the right laser module depends on intended use, desired laser spot size, workspace, etc. For a more informed decision, refer to our comparison article that discuss different laser modules and their optimal applications.

Learn More

Features

20W & 40W Laser Power

20mm Pinewood Cutting in one pass (40W)
15mm Basswood Plywood Cutting in one pass (40W) 10mm Basswood Plywood Cutting in one pass (20W)

Smart Air Assist

Prevent charring, improve the quality of your work, and keep laser lens clean. Air Assist can be controlled via Luban, saving you the bother of manually turning it on or off for different layers.

1000+ Ready-to-use Templates in Luban

Provide an extensive library of preset templates, including common patterns, shapes, and icons, for you to come up with a design in minutes.

Easy to Focus

Calibrate the focus by inputting material thickness on screen and run auto-focus or focus Laser with Focus Lever.

Laser Safety Shield

Reduce laser radiation. Together with the use of Enclosure for 2.0, Artisan or Ray, the laser hazards can be reduced from Class 4 to Class 1.

Learn More

Transform Even More Ideas Into Reality

Specification

40W Laser Module

Laser Output Power

40W

Laser Electric Power

125W

Laser Type

450 - 460nm Semi-conductor

Dimensions

105mm × 166mm × 75mm

Weight

1.26kg

Maximum Work Speed^[1]

Snapmaker 2.0: 100mm/s
Snapmaker Artisan: 200mm/s

Maximum Cutting Speed^[2]

20mm/s

400mm × 400mm (Artisan)

Work Area

320mm × 350mm (A350/A350T/F350)

230mm × 250mm (A250/A250T/F250)

Frame Material

Aluminum Alloy

Supported Engraving Materials

Supported Cutting Materials

Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric,Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded), Stainless Steel (0.1mm)

Maximum Thickness of one-pass cutting

15mm Basswood Plywood

Laser Spot Dimensions

0.1mm × 0.15mm

Supported Design File

STL, SVG, JPEG, PNG, JPG, BMP, DXF, SNAPLZR

Supported Processing File

Air Assist

√

Camera Capture

Focus Method

2.0/Artisan: Auto-focus through manual measuring or Material Touching Measuring (using Focus Lever)

Overheat Protection

√

Orientation Detection

√

Compatibility

Artisan (3-in-1 version), Ray, A350T/A350, A250T/A250, F350/F250, Air Purifier, Rotary Module, CAN Hub, Emergency Stop Button, Enclosure for 2.0

20W Laser Module

Laser Output Power

20W

Laser Electric Power

65W

Laser Type

450 - 460nm Semi-conductor

Dimensions

92mm × 141mm × 65mm

Weight

0.81kg

Maximum Work Speed^[1]

Snapmaker 2.0: 100mm/s
Snapmaker Artisan: 200mm/s

Maximum Cutting Speed^[2]

10mm/s

400mm × 400mm (Artisan)

Work Area

320mm × 350mm (A350/A350T/F350)

230mm × 250mm (A250/A250T/F250)

Frame Material

Aluminum Alloy

Supported Engraving Materials

Supported Cutting Materials

Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric,Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)

Maximum Thickness of one-pass cutting

10mm Basswood Plywood

Laser Spot Dimensions

0.08mm × 0.1mm

Supported Design File

STL, SVG, JPEG, PNG, JPG, BMP, DXF, SNAPLZR

Supported Processing File

Air Assist

√

Camera Capture

Focus Method

2.0/Artisan: Auto-focus through manual measuring or Material Touching Measuring (using Focus Lever)

Overheat Protection

√

Orientation Detection

√

Compatibility

Artisan (3-in-1 version), Ray, A350T/A350, A250T/A250, F350/F250, A150, Air Purifier, Rotary Module, CAN Hub, Emergency Stop Button, Enclosure for 2.0

Comparison

Weight

1.26kg

Maximum Engraving Speed

Snapmaker 2.0: 100mm/s Snapmaker Artisan: 200mm/s

Maximum Cutting Speed

20 mm/s

Maximum Thickness of one-pass cutting

15mm Basswood Plywood

400mm × 400mm (Artisan)

Work Area

320mm × 350mm (A350/A350T/F350)

230mm × 250mm (A250/A250T/F250)

Laser Spot Dimensions

0.1mm × 0.15mm

Air Assist

√

Camera Capture

Weight

0.81kg

Maximum Engraving Speed

Snapmaker 2.0: 100mm/s Snapmaker Artisan: 200mm/s

Maximum Cutting Speed

10mm/s

Maximum Thickness of one-pass cutting

10mm Basswood Plywood

400mm × 400mm (Artisan)

Work Area

320mm × 350mm (A350/A350T/F350)

230mm × 250mm (A250/A250T/F250)

Laser Spot Dimensions

0.08mm × 0.1mm

Air Assist

√

Camera Capture

Weight

0.63kg

Maximum Engraving Speed

Snapmaker 2.0: 100mm/s 
Snapmaker Artisan: 200mm/s

Maximum Cutting Speed

5mm/s

Maximum Thickness of one-pass cutting

5mm Basswood Plywood

400mm × 400mm (Artisan)

Work Area

320mm × 350mm (A350/A350T/F350)

230mm × 250mm (A250/A250T/F250)

Laser Spot Dimensions

0.05mm × 0.2mm

Air Assist

Camera Capture

√

In the Box (40W Laser Module)

40W Laser
Module × 1

Air Assist Pump × 1

Air Tube × 1

Boosted Toolhead Cable (for Snapmaker 2.0 user only) × 1

Air Assist Pump Conversion Cable (for Snapmaker 2.0 user only) × 1

Cotton Swab × 5

Cable Tie × 1

M4 × 12 Screw × 3

M4 × 8 Screw × 6

Basswood Plywood
× 1

Calibration Card × 1

Online Tutorial Guide Card × 1

Laser Lens Protector × 1

Base Plate × 1

AC Power Cable × 1

USB Cable × 1

In the Box (20W Laser Module)

20W Laser
Module × 1

Air Assist Pump × 1

Air Tube × 1

Air Assist Pump Conversion Cable (for Snapmaker 2.0 user only) × 1

Cotton Swab × 5

Cable Tie × 1

M4 × 12 Screw
× 3

M4 × 8 Screw
× 6

Basswood Plywood
× 1

Calibration Card × 1

Online Tutorial Guide Card × 1

Laser Lens Protector × 1

Base Plate × 1

AC Power Cable × 1

USB Cable × 1

Frequently Asked Questions

1. What is the maximum cutting thickness of 20W & 40W Laser Module?

20W laser module: 10mm Basswood Plywood in one pass.
40W laser module: 15mm Basswood Plywood in one pass.

2. What are the specs of 10W & 20W & 40W Laser Module?

Notes:
[1] Depending on your material, the work speed might vary.
[2] The data is obtained based on the 3mm Basswood Plywood performing one pass cutting. Depending on your material, the cutting speed might vary.

3. What are the safety features of Snapmaker 20W & 40W laser modules?

4. What should I be aware of while operating?

5. Does the 20W & 40W Laser Module have a camera function like the 10W Laser Module?

6. Does Snapmaker support other software for laser engraving and cutting?

Yes, in addition to Snapmaker's own Luban software, Snapmaker laser modules are compatible with LightBurn for engraving and cutting.

7. Is there a list of recommended parameters for different materials?

After official testing, Snapmaker provides recommended parameters for three commonly used materials: basswood plywood, black acrylic, and walnut. Find Recommended Parameters for optimal performance.

8. If I have both the Snapmaker 2.0 machine and the Snapmaker Artisan machine, which one should I choose?

9. How should I manage fumes and exhaust with the Snapmaker 20W & 40W laser modules?

Use the Air Assist feature and operate the laser within an enclosed, well-ventilated area to effectively manage fumes and enhance safety.

10. How to choose a Snapmaker laser module that best suits me?

Choosing the right laser module depends on intended use, desired laser spot size, workspace, etc. For a more informed decision, refer to our comparison article that discuss different laser modules and their optimal applications.

Learn More

Snapmaker 40W Laser Module with Air Assist

Features

Transform Even More Ideas Into Reality

Specification

Comparison

In the Box (40W Laser Module)

In the Box (20W Laser Module)

Frequently Asked Questions

1. What is the maximum cutting thickness of 20W & 40W Laser Module?

2. What are the specs of 10W & 20W & 40W Laser Module?

3. What are the safety features of Snapmaker 20W & 40W laser modules?

4. What should I be aware of while operating?

5. Does the 20W & 40W Laser Module have a camera function like the 10W Laser Module?

6. Does Snapmaker support other software for laser engraving and cutting?

7. Is there a list of recommended parameters for different materials?

8. If I have both the Snapmaker 2.0 machine and the Snapmaker Artisan machine, which one should I choose?

9. How should I manage fumes and exhaust with the Snapmaker 20W & 40W laser modules?

10. How to choose a Snapmaker laser module that best suits me?

1. What is the maximum cutting thickness of 20W & 40W Laser Module?

2. What are the specs of 10W & 20W & 40W Laser Module?

3. What are the safety features of Snapmaker 20W & 40W laser modules?

4. What should I be aware of while operating?

5. Does the 20W & 40W Laser Module have a camera function like the 10W Laser Module?

6. Does Snapmaker support other software for laser engraving and cutting?

7. Is there a list of recommended parameters for different materials?

8. If I have both the Snapmaker 2.0 machine and the Snapmaker Artisan machine, which one should I choose?

9. How should I manage fumes and exhaust with the Snapmaker 20W & 40W laser modules?

10. How to choose a Snapmaker laser module that best suits me?

Your cart

Snapmaker 40W Laser Module with Air Assist

Products

Policy

Explore

Choose options
