Name: SnapSpeed PLA CMYK Lithophane Filament Bundle (4kg, RFID)
Brand: Snapmaker
SKU: 34043
Price: 69.99 USD
Availability: InStock

SnapSpeed PLA CMYK Lithophane Filament Bundle (4kg, RFID)

SnapSpeed PLA CMYK Lithophane Filament Bundle

Before You Buy

The frame, light guide plate, backlight, and power supply are not included in this bundle. Download files to print the frame and light guide plate, and purchase the backlight and power supply separately. See “Printing Tips” below for download links and guidance on choosing a backlight and power supply.

Acknowledgement

Sincere thanks to Lithophane Maker for making colorful lithophane creation more accessible with its image-to-model generator.

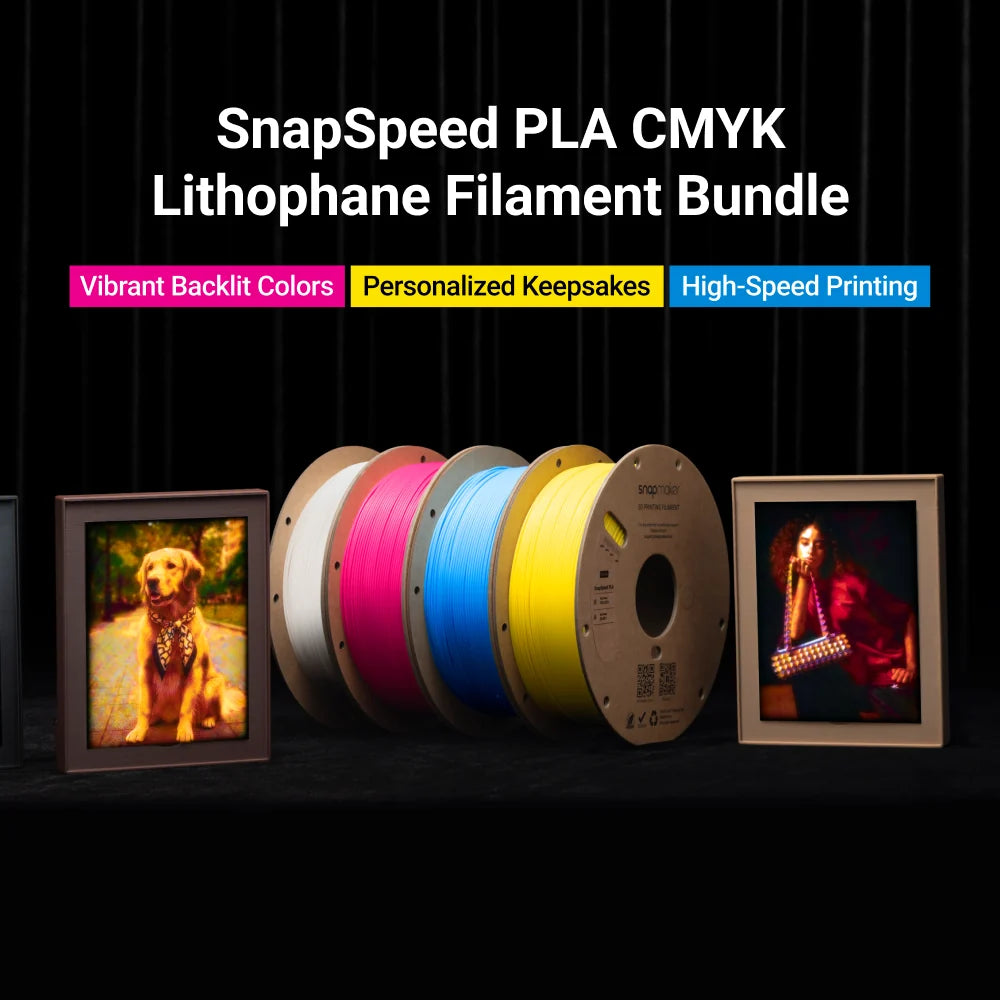

Layered Colors Come Alive in Light

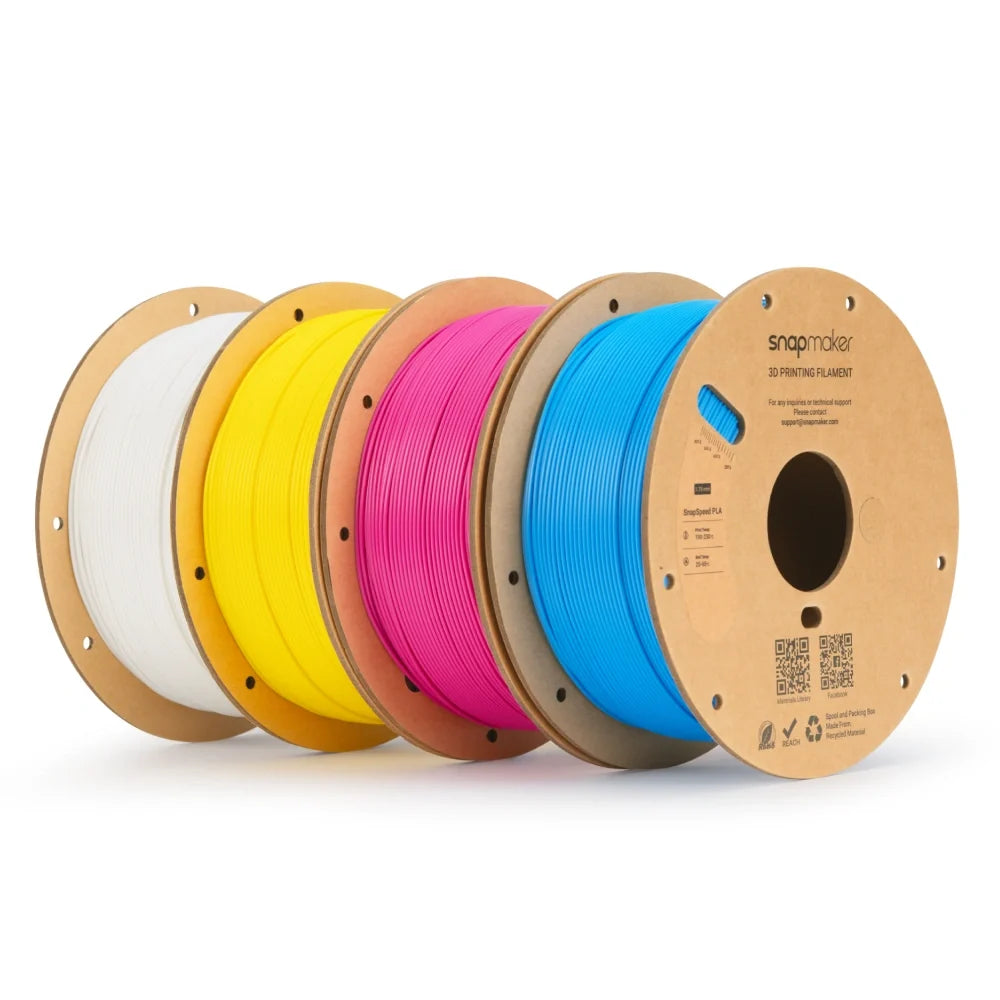

The SnapSpeed PLA CMYK Lithophane Filament Bundle combines four filaments to transform photos into vibrant backlit artwork. As light passes through the print, different filament combinations, layer thicknesses, and Transmission Distance (TD) values shape the image’s colors and brightness—bringing its details and depth to life.

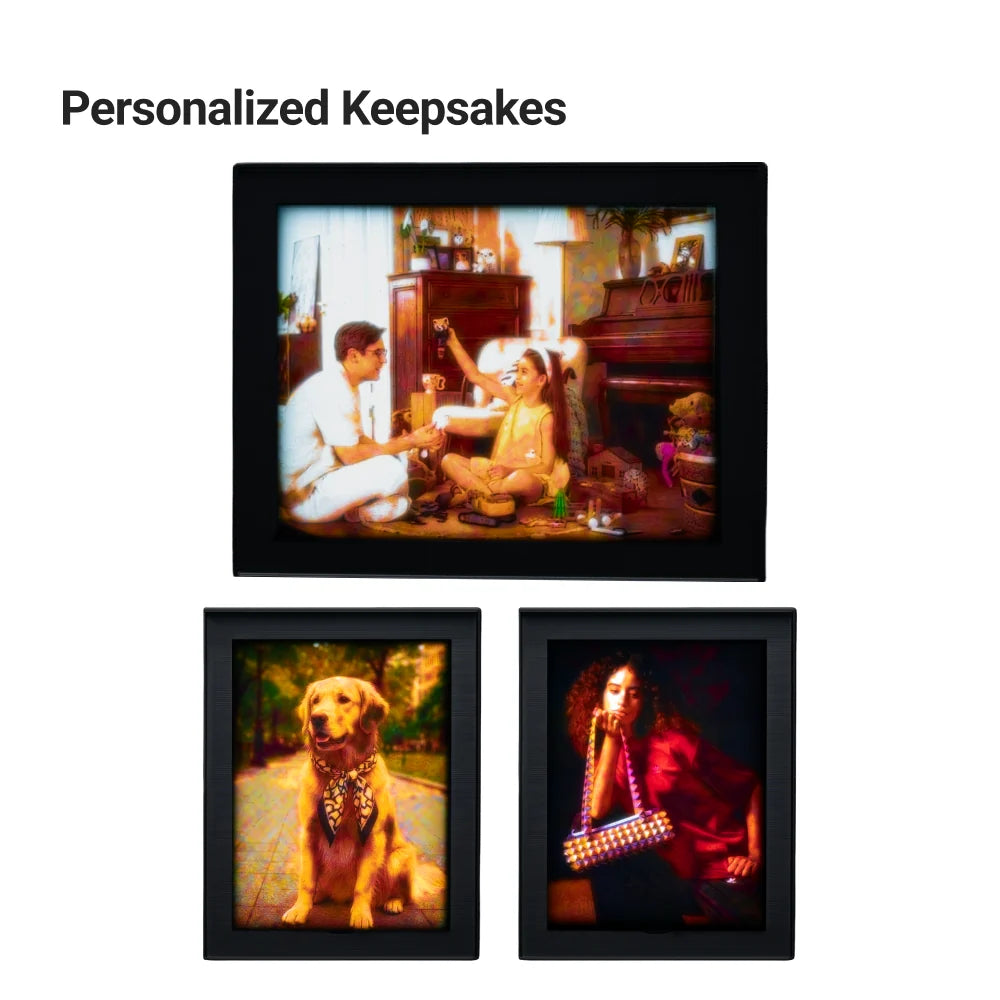

Personalized Prints, Lasting Memories

Transform photos of loved ones, pets, and meaningful moments into personalized lithophanes you can touch, display, and illuminate. Bring treasured memories beyond the screen—as heartfelt decor for everyday spaces or a one-of-a-kind gift made to be remembered.

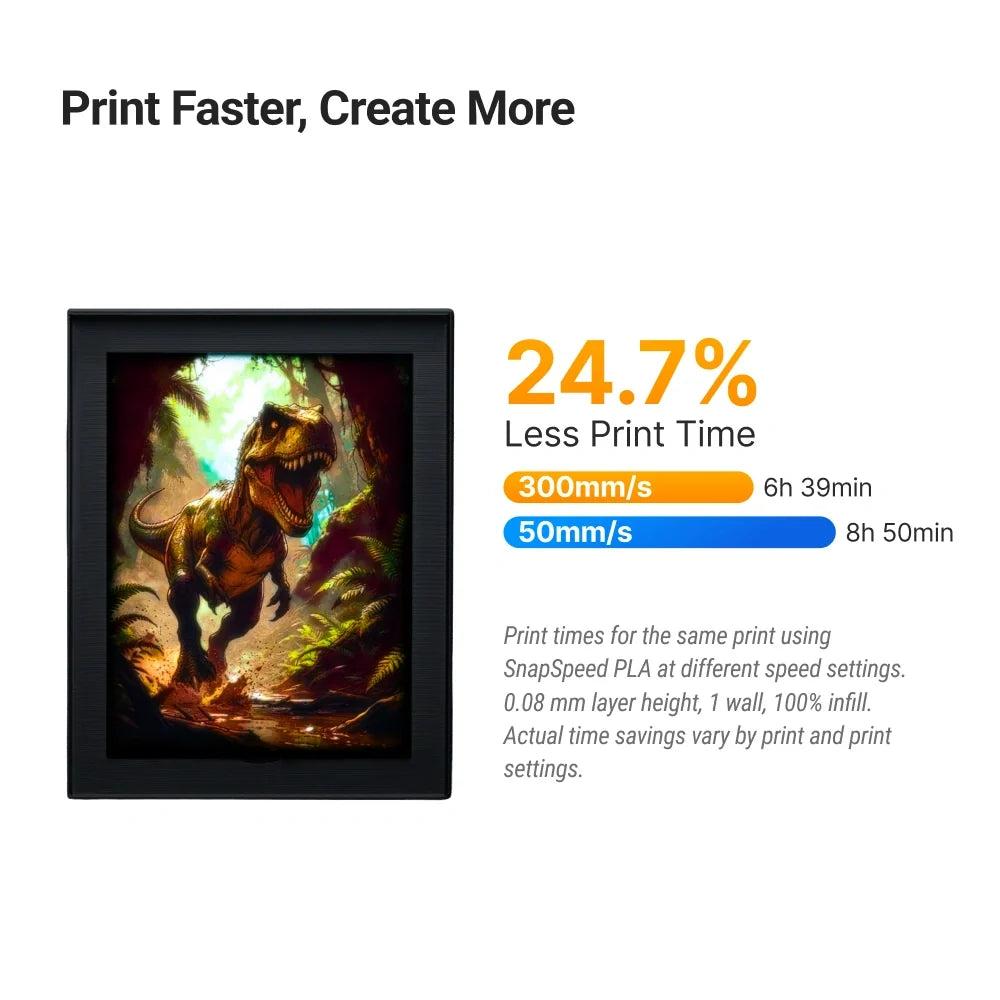

High-Speed Printing, Faster Creations

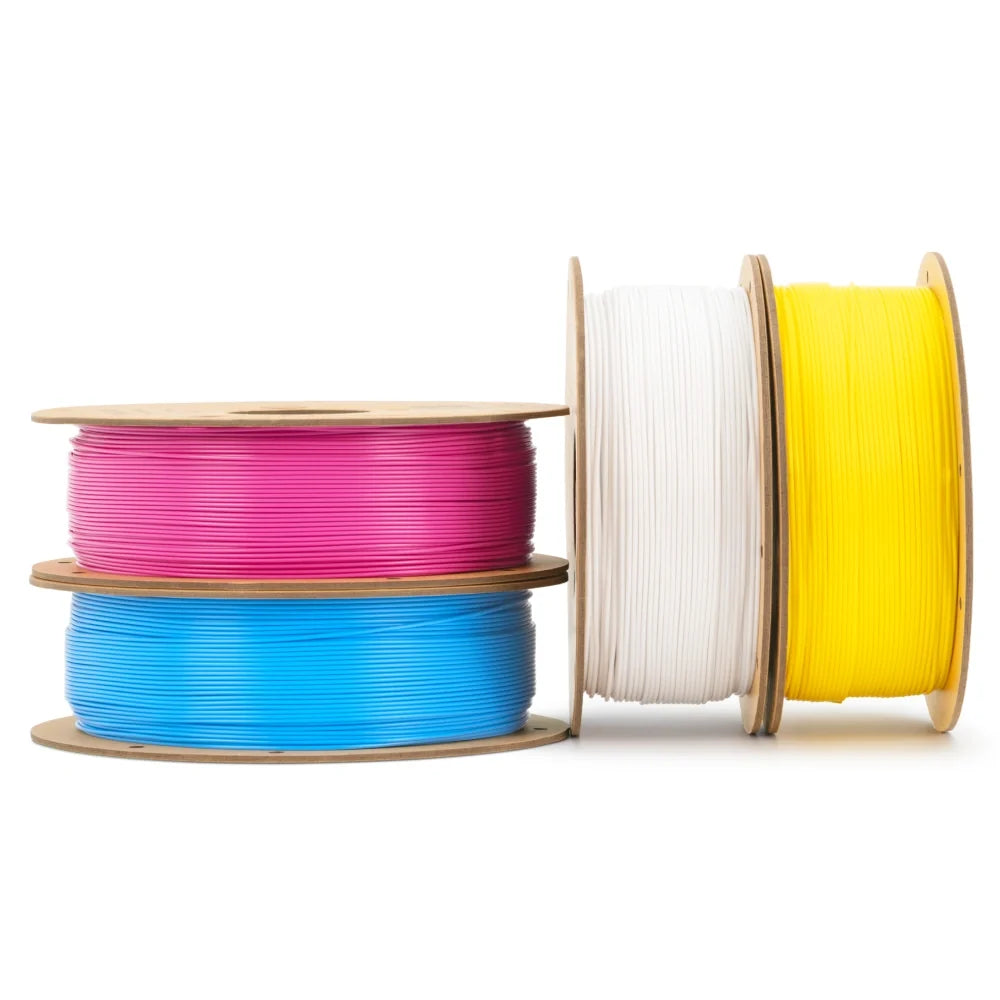

This bundle includes four spools of SnapSpeed PLA high-speed filament, supporting print speeds of up to 300 mm/s to reduce printing time and bring colorful lithophane creations to life faster.

Lithophane Workflow at a Glance

1. Generate the Model

Upload a photo, then follow the guide to generate and download the lithophane model files.

2. Slice and Print

Import all five STL files into Snapmaker Orca as a single multi-part object. Match each part to its corresponding filament color, then slice and print.

1. Generate the Model

Upload a photo, then follow the guide to generate and download the lithophane model files.

2. Slice and Print

Import all five STL files into Snapmaker Orca as a single multi-part object. Match each part to its corresponding filament color, then slice and print.

3. Assemble in Order

Assemble the frame, backlight, light guide plate, and lithophane print in order. Connect the power supply and bring your creation to light.

3. Assemble in Order

Assemble the frame, backlight, light guide plate, and lithophane print in order. Connect the power supply and bring your creation to light.

For complete step-by-step instructions, refer to the CMYK Color Lithophane Printing Instructions.

RFID Recognition^[2]

When used with the Snapmaker U1, the printer automatically loads preset filament information so you don’t need to adjust settings manually, making printing easier than ever.

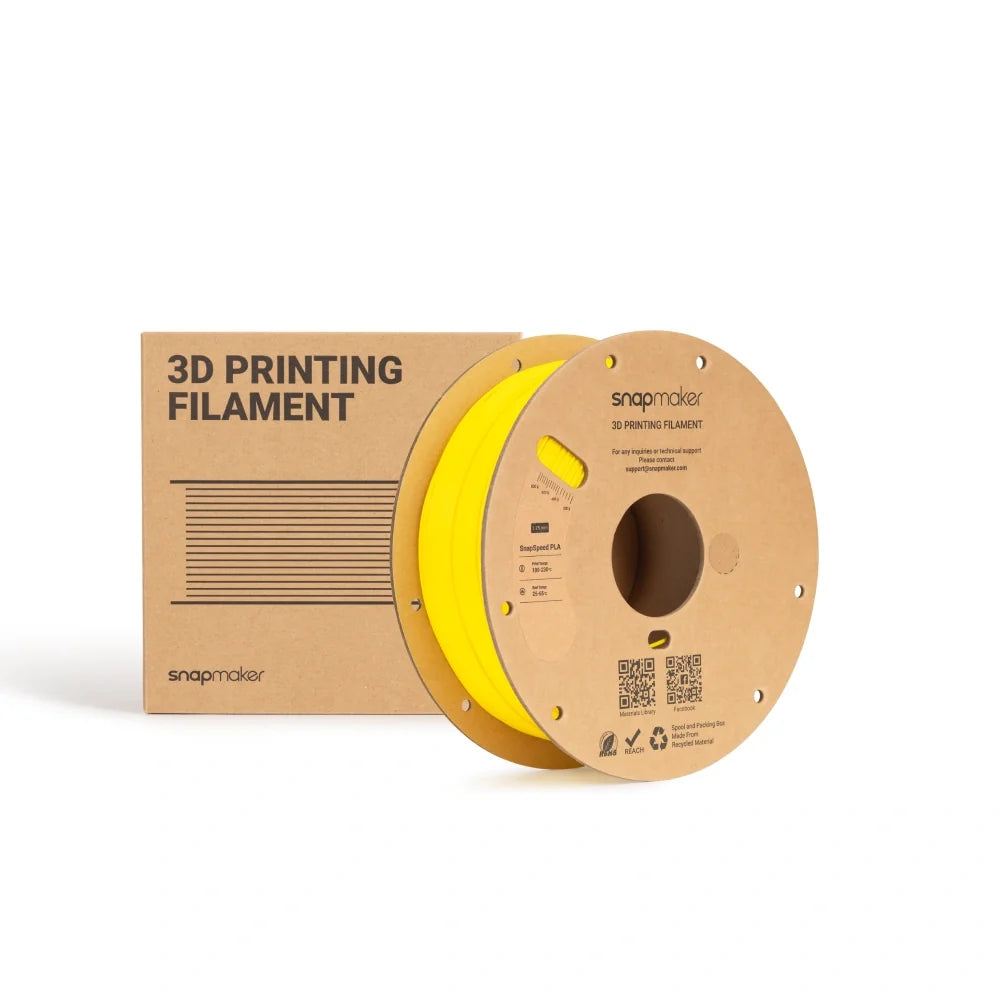

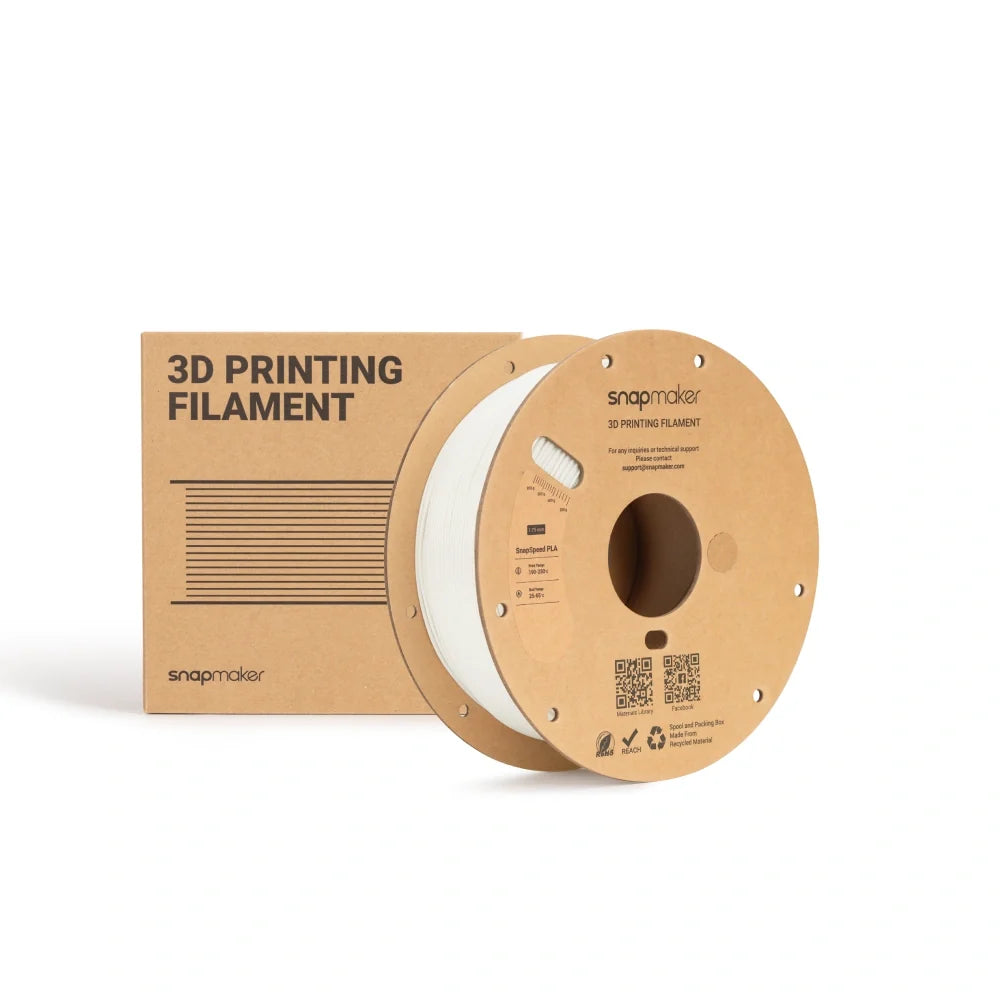

Recycled Spool & Packaging

Both the spool and packing box are made from recycled materials, reducing the use of virgin materials.

Please Note

1. The SnapSpeed PLA CMYK Lithophane Filament Bundle cannot guarantee an exact color match to the original image and is therefore not suitable for applications requiring high color accuracy. Final colors may vary depending on the filament colors and their transmission distance (TD) values, lithophane model generator settings, slicing settings, and other printing conditions.

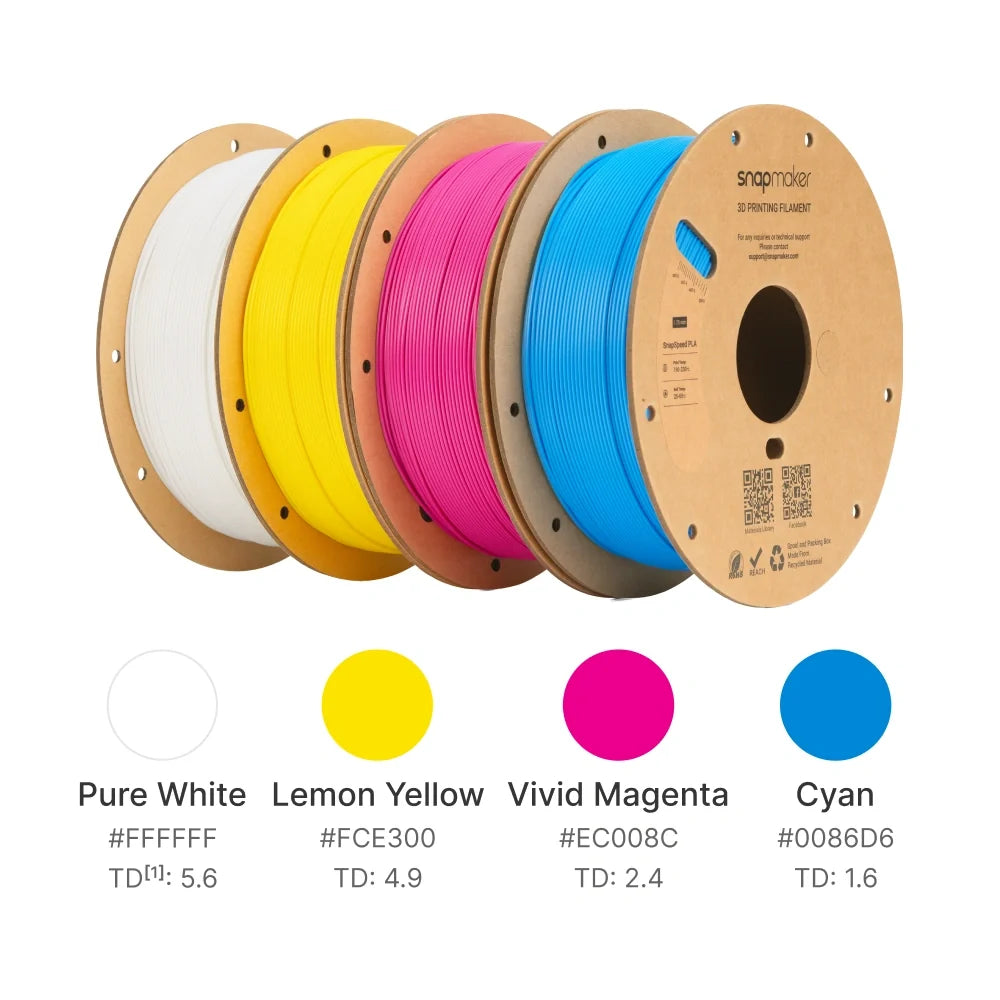

2. The transmission distance (TD) values of the four filaments in this bundle are specifically optimized for lithophanes and flat layered-color models. This bundle is not recommended for 3D models created using Full Spectrum color mixing, as it will produce visible horizontal stripes.

Printing Tips

Drying & Storage

• Pre-Drying: The filament has low moisture sensitivity and generally does not require drying. However, pre-drying is recommended for optimal print results. The recommended setting is 55°C for 6 hours.
• Storage: When not in use, keep the filament away from direct sunlight in a sealed container with desiccant.

Printing

• Refer to the Lithophane Printing Guide: Models for printing with this filament bundle can be generated using the Lithophane Makers model generator. For detailed instructions on model generation, slicing, and printing, refer to the CMYK Color Lithophane Printing Instructions on Snapmaker’s official wiki. If you use a different third-party model generator, follow the parameter settings specified in this guide.
• Prepare the Frame, Light Guide Plate, and Backlight: To assemble a complete backlit lithophane, you will need a frame, a light guide plate, and a backlight. Download the frame and light guide plate models from the wiki article CMYK Color Lithophane Printing Instructions, print them, and use them for final assembly. The backlight must be purchased separately. We recommend a 156 mm × 120 mm backlight panel powered via USB-C.
• Choose a Suitable Image: For clearer details and better backlit results, choose an image with strong tonal contrast, a prominent subject, and a simple background. Avoid images with low contrast, cluttered backgrounds, or an indistinct subject.
• Use the Recommended Hotends: 0.2 mm hotends are recommended for finer image details. 0.4 mm hotends can also be used, but the finished print may show less detail.

Specifications

Recommended Printing Conditions

* Based on 0.4 mm nozzle. Printing conditions may vary with different nozzle diameters.

Nozzle Temperature

Standard Speed: 190–210°C
High Speed: 210–230°C

Bed Temperature

25–65°C

Cooling Fan

Printing Speed

Up to 300 mm/s

Drying Settings Before Printing

55°C for 6 h

Physical Properties

Density

1.23 g/cm³ (21.5°C)

Melt Index

15.4 g/10 min

Melting Temperature

164°C

Glass Transition Temperature

59°C

Vicat Softening Temperature

61°C

Heat Deflection Temperature

52°C (1.8 MPa)

Saturated Water Absorption Rate

0.40% (23°C, 70% RH)

Mechanical Properties at High Speed

Tensile Strength (X-Y)

43.9 ± 0.4 MPa

Tensile Strength (Z)

32.4 ± 0.4 MPa

Breaking Elongation Rate (X-Y)

15.1 ± 3.9%

Breaking Elongation Rate (Z)

3.3 ± 0.5%

Bending Modulus (X-Y)

2797.9 ± 40.7 MPa

Bending Strength (X-Y)

71.4 ± 0.6 MPa

Impact Strength (X-Y)

5.0 ± 0.5 kJ/m² (Notched)

Mechanical Properties at Standard Speed

Tensile Strength (X-Y)

46.0 ± 0.5 MPa

Tensile Strength (Z)

37.3 ± 0.7 MPa

Breaking Elongation Rate (X-Y)

21.5 ± 5.02%

Breaking Elongation Rate (Z)

4.2 ± 2.0%

Bending Modulus (X-Y)

2868.2 ± 78.4 MPa

Bending Strength (X-Y)

76.5 ± 0.9 MPa

Impact Strength (X-Y)

6.1 ± 0.6 kJ/m² (Notched)

Recommended Printing Conditions

*Based on a 0.4mm nozzle. Printing conditions may vary with different nozzle diameters.

Nozzle Temperature

Standard Speed: 190–210°C
High Speed: 210–230°C

Bed Temperature

25–65°C

Cooling Fan

Printing Speed

Up to 300 mm/s

Drying Settings Before Printing

55°C for 6 h

Physical Properties

Density

1.23 g/cm³ (21.5°C)

Melt Index

15.4 g/10 min

Melting Temperature

164°C

Glass Transition Temperature

59°C

Vicat Softening Temperature

61°C

Heat Deflection Temperature

52°C (1.8 MPa)

Saturated Water Absorption Rate

0.40% (23°C, 70% RH)

Mechanical Properties at High Speed

Tensile Strength (X-Y)

43.9 ± 0.4 MPa

Tensile Strength (Z)

32.4 ± 0.4 MPa

Breaking Elongation Rate (X-Y)

15.1 ± 3.9%

Breaking Elongation Rate (Z)

3.3 ± 0.5%

Bending Modulus (X-Y)

2797.9 ± 40.7 MPa

Bending Strength (X-Y)

71.4 ± 0.6 MPa

Impact Strength (X-Y)

5.0 ± 0.5 kJ/m² (Notched)

Mechanical Properties at Standard Speed

Tensile Strength (X-Y)

46.0 ± 0.5 MPa

Tensile Strength (Z)

37.3 ± 0.7 MPa

Breaking Elongation Rate (X-Y)

21.5 ± 5.02%

Breaking Elongation Rate (Z)

4.2 ± 2.0%

Bending Modulus (X-Y)

2868.2 ± 78.4 MPa

Bending Strength (X-Y)

76.5 ± 0.9 MPa

Impact Strength (X-Y)

6.1 ± 0.6 kJ/m² (Notched)

Product Resources

Icon representing a PDF document with text lines above.

Technical Data Sheet

User Guide

Hex Code & TD Value Table

Technical Data Sheet

User Guide

Hex Code & TD Value Table

In the Box

Sealed Spool Filament × 4

Desiccant × 4

Paper Packaging Box × 4

Sealed Spool Filament × 4

Desiccant × 4

Paper Packaging Box × 4

Note:
[1] The provided filament Transmission Distance (TD) values are for reference only and may vary slightly between filament batches and testing conditions.
[2] RFID function is only available for the Snapmaker U1.

Frequently Asked Questions

1. Compability

• Snapmaker U1: Optimized profiles built into Snapmaker Orca.
• Other printers: Compatible with most FDM 3D printers. Manual parameter tuning may be required.

2. What is the SnapSpeed PLA CMYK Lithophane Filament Bundle?

The SnapSpeed PLA CMYK Lithophane Filament Bundle is designed for creating lithophanes and flat layered-color models.
The Transmission Distance (TD) values of the four filaments are specifically optimized for these applications.

3. Can I print a lithophane from a photo?

Yes. You can use your photos to create colorful, three-dimensional lithophanes. While the colors may not exactly match the original photo, you can still create a meaningful, dimensional keepsake for your family and loved ones.
The final result may vary depending on the filament colors and their Transmission Distance (TD) values, lithophane model generator settings, slicing settings, and other printing conditions.

4. Can I use this filament bundle for Full Spectrum color mixing?

This bundle is not recommended for 3D models created using Full Spectrum color mixing.
The TD values of the four filaments are specifically optimized for lithophanes and flat layered-color models. When used for Full Spectrum color mixing, the printed model will show visible horizontal stripes.

5. Do I need to dry the filament before printing?

The filament has low moisture sensitivity, so drying is generally not required. However, pre-drying is recommended for optimal print results. The recommended setting is 55°C for 6 hours.

6. How should I store the filament?

When not in use, store the filament in a dry place away from direct sunlight to maintain consistent print quality.

7. How do I generate a lithophane model with this filament bundle?

Models for printing with this filament bundle can be generated using the Lithophane Makers model generator. For detailed instructions on model generation, slicing, and printing, refer to the CMYK Color Lithophane Printing Instructions on Snapmaker’s official wiki.
If you use a different third-party model generator, follow the parameter settings specified in this guide.

8. What do I need to assemble a complete backlit lithophane?

To assemble a complete backlit lithophane, you will need a frame, a light guide plate, and a backlight.
Download the frame and light guide plate models from the wiki article CMYK Color Lithophane Printing Instructions, print them, and use them for final assembly. The backlight must be purchased separately.
We recommend a 156 mm × 120 mm backlight panel powered via USB-C.

9. What type of image should I use for a lithophane?

For clearer details and better backlit results, choose an image with:
• Strong tonal contrast
• A prominent subject
• A simple background
Avoid images with:
• Low contrast
• Cluttered backgrounds
• An indistinct subject

10. Do I need a hardened steel hotend?

No. A hardened steel hotend is not required for this filament bundle. The recommended hotend is a 0.2 mm hotend for finer image details. A 0.4 mm hotend can also be used, but the finished print may show less detail.

11. Do I need a Top Cover to print lithophanes with this filament bundle?

No. A Top Cover is not required for printing lithophanes with this filament bundle. You can print lithophanes using the standard open setup of the Snapmaker U1.
