Enclosure for Snapmaker 2.0
Enclosure for Snapmaker 2.0
Enclosure for Snapmaker 2.0
Enclosure for Snapmaker 2.0
Enclosure for Snapmaker 2.0
Enclosure for Snapmaker 2.0
Enclosure for Snapmaker 2.0
Enclosure for Snapmaker 2.0
Enclosure for Snapmaker 2.0
Enclosure for Snapmaker 2.0
Enclosure for Snapmaker 2.0
Enclosure for Snapmaker 2.0

Enclosure for Snapmaker 2.0

Regular price $599.00
/
Shipping calculated at checkout.
110 in stock

Size

Order will be shipped in 1-3 business days after payment confirmation. US local warehouse delivery in 3-7 business days.

Overall features:

• Laser reduction
• Noise reduction
• Smell & fume shielding
• Dust shielding
• Good lighting
• Stable environment for sensitive filaments
• Safe environment for kids and pets

Compatibility:

• Snapmaker 2.0

One-year warranty included.

Snapmaker 2.0 Enclosure

It offers you an extra layer of safety during the making process, and fits seamlessly into your Snapmaker 2.0 system.

Laser
Protection

Physical
Safeguards

Dust
Isolation

Exhaust
System

Tri-fold
Magnetic Doors

Door
Detection

Snapmaker 2.0 Enclosure

It offers you an extra layer of safety during the making process, and fits seamlessly into your Snapmaker 2.0 system.

Laser
Protection

Physical
Safeguards

Dust
Isolation

Exhaust
System

Tri-fold
Magnetic Doors

Door
Detection

Laser Reduction

The enclosure panels are specially designed to reduce the impact of laser from Snapmaker 2.0 Laser Engraving Module, from class four to the lowest level of class one [1] .

Laser Reduction

The enclosure panels are specially designed to reduce the impact of laser from Snapmaker 2.0 Laser Engraving Module, from class four to the lowest level of class one [1] .

Dust Isolation

Cover with the Enclosure and turn on the exhaust fan to cast off all the smoke and dust.

Dust Isolation

Cover with the Enclosure and turn on the exhaust fan to cast off all the smoke and dust.

Noise Reduction

The Enclosure reduces noise level by up to 10 dB(A) [2] , so you won’t be disturbed when machine is running.

Noise Reduction

The Enclosure reduces noise level by up to 10 dB(A) [2] , so you won’t be disturbed when machine is running.

Tri-fold Magnetic Doors

Pre-assembled doors can be triple-folded [3] , taking up only a very limited space, while providing sufficient childproofing.

Tri-fold Magnetic Doors

Pre-assembled doors can be triple-folded [3] , taking up only a very limited space, while providing sufficient childproofing.

Door Detection

Laser or CNC job pauses automatically when either door is opened [4] , giving you extra protection. And don't worry about your creation – you can resume it with just a few taps.

Door Detection

Laser or CNC job pauses automatically when either door is opened [4] , giving you extra protection. And don't worry about your creation – you can resume it with just a few taps.

Keep the Temperature Just Right

Warmth is maintained when you 3D print with high-performance filaments like ABS, so that the print is less likely to warp due to temperature variation.

Keep the Temperature Just Right

Warmth is maintained when you 3D print with high-performance filaments like ABS, so that the print is less likely to warp due to temperature variation.

Built-in LED Strips

Create as you like, whether it’s day or night.

Built-in LED Strips

Create as you like, whether it’s day or night.

Custom Software Support

Control the LED strips and exhaust fan using the Touchscreen or Snapmaker Luban that you're familiar with.

Custom Software Support

Control the LED strips and exhaust fan using the Touchscreen or Snapmaker Luban that you're familiar with.

All-purpose Beams for Your Imagination

The enclosure frame is constructed with universal 24 mm and 48 mm Aluminum beams, where you can add official, or even DIY addons to your machine.

All-purpose Beams for
Your Imagination

The enclosure frame is constructed with universal 24 mm and 48 mm Aluminum beams, where you can add official, or even DIY addons to your machine.

Specifications

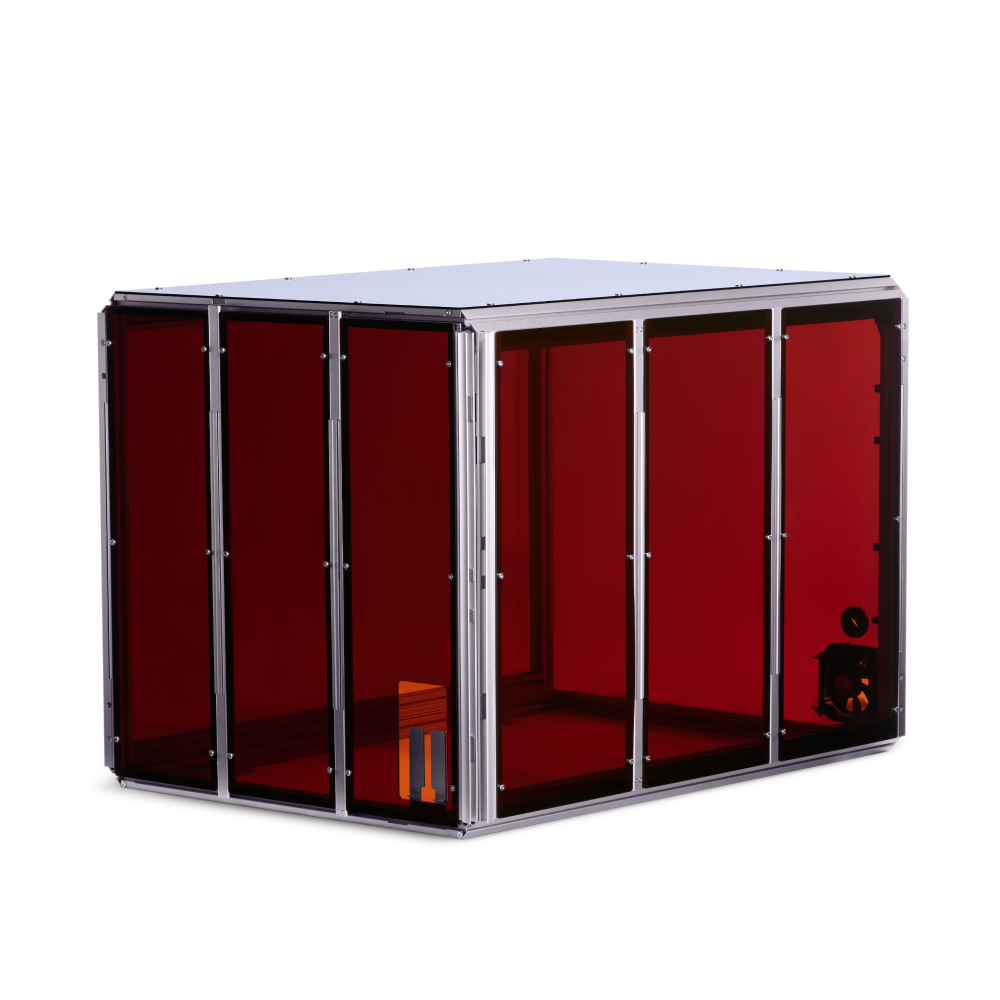

A350T/F350/A350 Enclosure

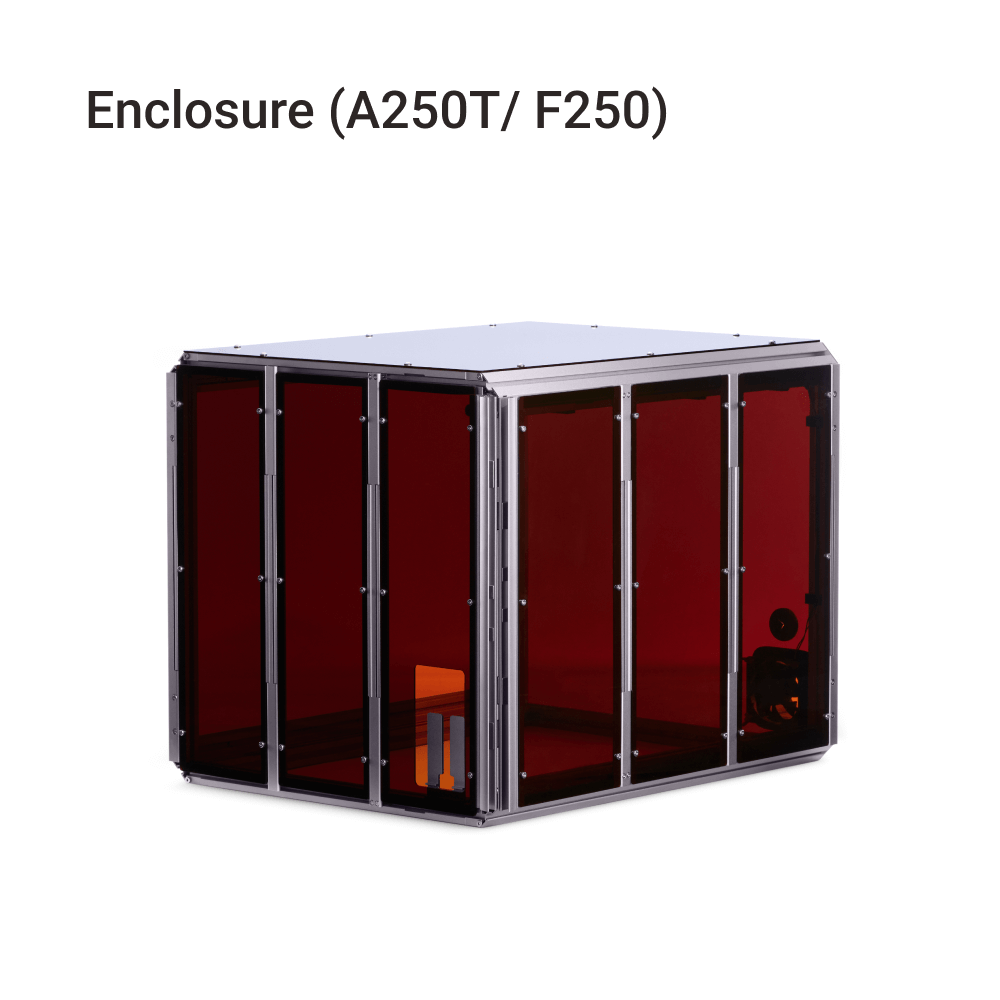

A250T/F250/A250 Enclosure

Net Weight
19.3 kg

Net Weight
14.2 kg

Package Dimensions(W × D × H)
900 × 690 × 180 mm

Package Dimensions(W × D × H)
700 × 600 × 260 mm

Package Weight:
22.8 kg

Package Weight:
16.5 kg

Frame Material
Aluminum alloy

Frame Material
Aluminum alloy

Panel Material
Acrylic

Panel Material
Acrylic

Functional Units
LED Strips, Exhaust Fan, Hose

Functional Units
LED Strips, Exhaust Fan, Hose

Specifications

A350T/F350/A350 Enclosure

Net Weight
19.3 kg

Package Dimensions(W × D × H)
900 × 690 × 180 mm

Package Weight:
22.8 kg

Frame Material
Aluminum alloy

Panel Material
Acrylic

Functional Units
LED Strips, Exhaust Fan, Hose


A250T/F250/A250 Enclosure

Net Weight
14.2 kg

Package Dimensions(W × D × H)
700 × 600 × 260 mm

Package Weight:
16.5 kg

Frame Material
Aluminum alloy

Panel Material
Acrylic

Functional Units
LED Strips, Exhaust Fan, Hose

In the Box[5]

Side Folding Door
×1

Side Panel
×1

Top Panel
×1

Hose

×1

Back Panel
×1

Front Folding Door
×1

24 Beam A350-1
×2

48CA Beam A350-1
×1

24 Beam A350-2
×3

48CA Beam A350-2
×1

24 Beam A350-3
with Hall Switch
×1

48CA Beam A350-3
×1

24 Beam A350-4
×1

48CA Beam A350-4
×1

24 Beam A350-4 with
Enclosure Converter
×1

LED Strip Cable
×2

Quick Start Guide
×1

Exhaust Fan
×1

Hose Connector
×1

Touchscreen Holder
×1

Cable Clip
×20

Connecting Cable
×1

Foot Fixture
×4

Folding Door Slider
×8

Snap Bushing
×1

Hose Clamp
×1

M3 Hex Nut
×8

M3 × 10 Hex Socket
Head Screw
×8

M4 Wing Nut
×4

M4 × 20 Hex Socket
Head Screw
×16

M4 × 28 Hex Socket
Short Head Screw
×32

M4 × 12 Hex Socket
Round Head Screw
×34

H2.0 Hex Key
×1

H2.5 Hex Key
×1

M4 × 35 Hex Socket
Head Screw
×4

In the Box[5]

Side Folding Door
×1

Side Panel
×1

Top Panel
×1

Hose

×1

Back Panel
×1

Front Folding Door
×1

24 Beam A350-1
×2

48CA Beam A350-1
×1

24 Beam A350-2
×3

48CA Beam A350-2
×1

24 Beam A350-3
with Hall Switch
×1

48CA Beam A350-3
×1

24 Beam A350-4
×1

48CA Beam A350-4
×1

24 Beam A350-4 with
Enclosure Converter
×1

LED Strip Cable
×2

Quick Start Guide
×1

Exhaust Fan
×1

Hose Connector
×1

Touchscreen Holder
×1

Cable Clip
×20

Connecting Cable
×1

Foot Fixture
×4

Folding Door Slider
×8

Snap Bushing
×1

Hose Clamp
×1

M3 Hex Nut
×8

M3 × 10 Hex Socket
Head Screw
×8

M4 Wing Nut
×4

M4 × 20 Hex Socket
Head Screw
×16

M4 × 28 Hex Socket
Short Head Screw
×32

M4 × 12 Hex Socket
Round Head Screw
×34

H2.0 Hex Key
×1

H2.5 Hex Key
×1

M4 × 35 Hex Socket
Head Screw
×4

Notes:

[1] Tested by Bay Area Compliance Laboratories Corp. (Shenzhen), according to standard IEC/EN 60825-1:2014. Report No.: RSZ200416002-SF-09.

[2] The test result was obtained in Snapmaker laboratory, which may vary depending on the testing conditions and product iteration, and is for reference only.

[3] The A150 Enclosure's doors are magnetic, but can't be folded.

[4] Door Detection applies only to laser and CNC functions, excluding 3D printing.

[5] The parts shown above are from A350T/A350/F350 enclosure. The size, number and design of the parts may vary depending on the enclosure models.

Notes:

[1] Tested by Bay Area Compliance Laboratories Corp. (Shenzhen), according to standard IEC/EN 60825-1:2014. Report No.: RSZ200416002-SF-09.

[2] The test result was obtained in Snapmaker laboratory, which may vary depending on the testing conditions and product iteration, and is for reference only.

[3] The A150 Enclosure's doors are magnetic, but can't be folded.

[4] Door Detection applies only to laser and CNC functions, excluding 3D printing.

[5] The parts shown above are from A350T/A350/F350 enclosure. The size, number and design of the parts may vary depending on the enclosure models.

Customer Reviews

Based on 60 reviews
65%
(39)
23%
(14)
10%
(6)
2%
(1)
0%
(0)
m
mr.vincent.richard@gmail.com
Bonne facture

Construction aisée et de bonne qualité. L’imprimante est désormais plus silencieuse. Un bémol, il serait bien de pouvoir choisir les côtés où sont montés les ouvertures. Je recommande ce caisson.

S
Skyler Matthews
Good but could be better

First, like everything snapmaker, the packaging and instructions are top notch. Detailed assembly instructions with clear illustrations and 1:1 screw/bolt icons to make sure you are using the right hardware. However I really wish the touch screen could go on the other side of the enclosure. It would really help on a space for set up front as it being on the front of the longest side makes it really difficult to put on anything and have the touch screen face "out". So it ends up being sideways. And thus harder to use. If it was on the other face it would also be less stress on the cord. But that is where the hole is cut out and that leads me to my next issue. The fumes. We have been doing some laser cutting and even with the enclosure fully set and closed and fan on the fumes get so bad she gets head aches if she stays in the room. Something you are supposed to do when operating a high powered laser such as this. So keep in mind orientation when deciding on a space, that threw us through a loop. And invest in a charcoal canister of some kind to help with the fumes.

Hi Skyler Matthews,
Thank you for reaching out to us.

We have forwarded your feedback to our R&D team for further evaluation.
As for the fumes, you may consider the air purifier. For more details about this product, please see 3D Printer Air Purifier Online | Best Air Purifier For 3D Printer – Snapmaker US.

If you have any questions, please don't hesitate to contact us.
Have a nice day.

Best Regards
Support Team

J
Jordan
Awesome

Its perfect

T
Thomas Benson

Enclosure for Snapmaker 2.0

D
Daniel Leduc
a welcome and necessary addition to the Snapmaker

I bought this enclosure since I knew that using the laser would make smoke. It is great for venting the smoke out of the window and not setting off my smoke alarm. However, I also really like the LED lighting so that one can really see the printer and what you are printing.
It is not perfect though. the assembly could have been made much easier. Unlike the Snapmaker itself the screws were not labelled so I had to measure them to see which went where and more importantly many of the other parts could have been labelled better indicating top and bottom and left and right as well as better labelled pictures in the installation manual. Another minor issue is that the new touchscreen holder does not hold the touchscreen vertical. I printed a bracket to make it do so.
